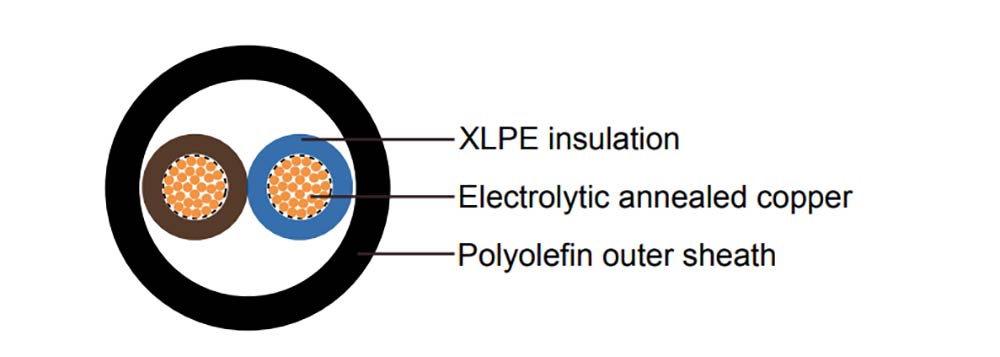

FXZ1 Cable Construction
- – Flexible electrolytic annealed copper conductor
- – Class 5 in accordance with IEC 60228
- – XLPE insulation type DIX 3 according to HD603.
- – Color coded to HD 308
- – LOSH polyolephine outer sheath according to UNE 21123
FXZ1 Cable Application
These cables with zero Halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.
FXZ1 Cable Standard and Approval
IEC 60502-1
FXZ1 Cable Technical Characteristics
- – Working voltage: 600/1000 volts
- – Test voltage: 3500 volts
- – Minimum bending radius: 10 x Ø
- – Working temperature: -15º C to +90º C
- – Short circuit temperature: +250º C
- – Insulation resistance: 1000 MΩ x km
- – Halogen free: IEC 60754-1, EN 50267-2-1
- – No corrosive gases: IEC 60754-2, EN 50267-2-2
- – No toxic gases: NES 02-713, NF X 70-100
- – Low smoke density: IEC 61034, EN 50268-2
- – Flame retardant: IEC 60332-1, EN 50265-2-1
- – Non-flame propagating: IEC 60332-3, EN 50266-2
FXZ1 Cable Specification
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm | Nominal Weight kg/km | AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm | Nominal Weight kg/km |
|---|---|---|---|---|---|---|---|
| 16(30/30) | 1×1.5 | 5.7 | 45 | 8(80/26) | 3×10/6 | 16.1 | 493 |
| 14(50/30) | 1×2.5 | 6.1 | 57 | 6(128/26) | 3×16/10 | 18 | 724 |
| 12(56/28) | 1×4 | 6.7 | 73 | 4(200/26) | 3×25/16 | 21.8 | 1091 |
| 10(84/28) | 1×6 | 7.2 | 94 | 2 (280/26) | 3×35/16 | 24.1 | 1405 |
| 8(80/26) | 1×10 | 8.1 | 136 | 1(400/26) | 3×50/25 | 28.1 | 1968 |
| 6(128/26) | 1×16 | 9 | 192 | 2/0(356/24) | 3×70/35 | 32.6 | 2722 |
| 4(200/26) | 1×25 | 11 | 286 | 3/0(485/24) | 3×95/50 | 37 | 3598 |
| 2 (280/26) | 1×35 | 12.1 | 380 | 4/0(614/24) | 3×120/70 | 41.5 | 4609 |
| 1(400/26) | 1×50 | 13.8 | 520 | 300 MCM (765/24) | 3×150/70 | 44.9 | 5579 |
| 2/0 (356/24) | 1×70 | 15.9 | 716 | 350 MCM (944/24) | 3×185/95 | 51.5 | 6926 |
| 3/0 (485/24) | 1×95 | 17.6 | 924 | 500MCM (1225/24) | 3×240/120 | 58.8 | 9030 |
| 4/0(614/24) | 1×120 | 19.4 | 1167 | 16(30/30) | 4G 1.5 | 9.7 | 136 |
| 300 MCM (765/24) | 1×150 | 21.5 | 1456 | 14(50/30) | 4G 2.5 | 10.6 | 182 |
| 350 MCM (944/24) | 1×185 | 24.1 | 1762 | 12(56/28) | 4G 4 | 12 | 252 |
| 500MCM (1225/24) | 1×240 | 26.9 | 2283 | 10(84/28) | 4G 6 | 13.3 | 336 |
| - | 1×300 | 29.6 | 2832 | 8(80/26) | 4G 10 | 15.4 | 513 |
| - | 1×400 | 33.8 | 3735 | 6(128/26) | 4×16 | 18.7 | 783 |
| - | 1×500 | 38 | 4845 | 4(200/26) | 4×25 | 23.1 | 1196 |
| - | 1×630 | 43.1 | 6311 | 2 (280/26) | 4×35 | 25.5 | 1616 |
| 16(30/30) | 2×1.5 | 8.3 | 97 | 1(400/26) | 4×50 | 30.3 | 2242 |
| 14(50/30) | 2×2.5 | 9.2 | 127 | 2/0(356/24) | 4×70 | 35.3 | 3119 |
| 12(56/28) | 2×4 | 10.1 | 167 | 3/0(485/24) | 4×95 | 39.4 | 4037 |
| 10(84/28) | 2×6 | 11.2 | 219 | 4/0(614/24) | 4×120 | 43.6 | 5104 |
| 8(80/26) | 2×10 | 13 | 323 | 300 MCM (765/24) | 4×150 | 49.8 | 6569 |
| 6(128/26) | 2×16 | 15.8 | 490 | 350 MCM (944/24) | 4×185 | 56.5 | 8063 |
| 16(30/30) | 3G1.5 | 8.8 | 114 | 500MCM (1225/24) | 4×240 | 63.1 | 10421 |
| 14(50/30) | 3G2.5 | 9.8 | 151 | 16(30/30) | 5G 1.5 | 10.3 | 159 |
| 12(56/28) | 3G4 | 11 | 206 | 14(50/30) | 5G 2.5 | 11.6 | 217 |
| 10(84/28) | 3G6 | 12 | 271 | 12(56/28) | 5G 4 | 13 | 302 |
| 8(80/26) | 3G10 | 14.1 | 412 | 10(84/28) | 5G 6 | 14.6 | 406 |
| 6(128/26) | 3×16 | 16.9 | 624 | 8(80/26) | 5G 10 | 16.8 | 625 |
| 4(200/26) | 3×25 | 20.6 | 947 | 6(128/26) | 5G 16 | 20.4 | 956 |
| 2 (280/26) | 3×35 | 23.4 | 1276 | 4(200/26) | 5G 25 | 25.1 | 1459 |
| 1(400/26) | 3×50 | 26.8 | 1752 | 2 (280/26) | 5G 35 | 28.1 | 1968 |
| 2/0(356/24) | 3×70 | 31.5 | 2436 | 1(400/26) | 5G 50 | 33.7 | 2779 |
