600/1000V XG (frs) / XZ1(frs) Fire Resistance Power Cable

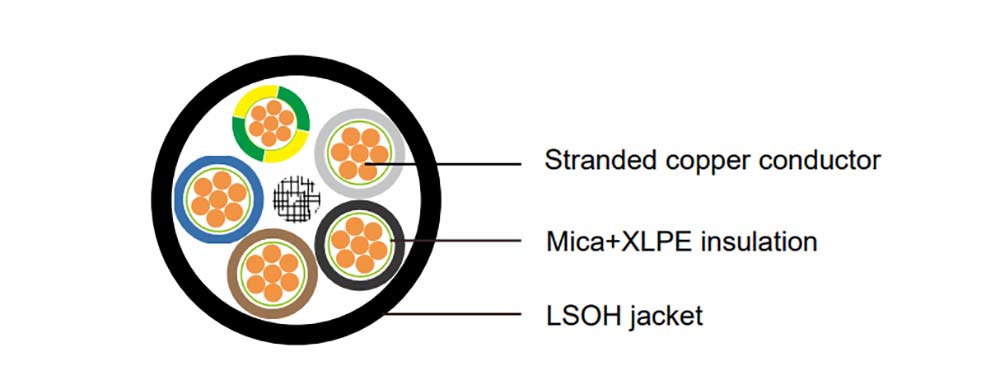

XG (frs) / XZ1(frs) Cable Construction

– Plain copper conductor, class 1(6mmsq) to NP 2363
– Mica tape+XLPE insulation
– Colour coded to HD 308
– Not fibrous and not hygroscopic filler(optional)
– Flexible LSOH outer jacket

XG (frs) / XZ1(frs) Cable Application

These cables are specially designed to transmit electric power in the extreme conditions that there are in a large fire. assuring electric supply to emergency circuits. like signaling lights. fume extractors. acoustic alarms. water pumps. etc. In case of fire. it does not emit toxic or corrosive gases. thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason. its use is recommended in public places such as: hospitals. schools. museums. airports. bus terminals. shops in general. tunnels. the underground. etc.. as well as in calculation centre. offices. production plants. laboratories. etc.

XG (frs) / XZ1(frs) Cable Standard

IEC60502-1

XG (frs) / XZ1(frs) Cable Technical Characteristics

Voltage Rating	600/1000V
Test voltage	3500 volts
Minimum bending radius	12 x Ø
Operation temperature range	-15ºC to +90ºC
Short-circuit temperature	+250ºC
Halogen free	IEC 60754-1. EN 50267-2-1
No corrosive gases	IEC 60754-2. EN 50267-2-2
No toxic gases	NES 02-713. NFx70-100
Low smoke density	IEC 61034, EN 50268-2
Flame retardant	IEC 60332-1, EN 50265-2-1
Non-flame propagating	IEC 60332-3, EN 50266-2
Insulation resistance	1000 MΩ x km

XG (frs) / XZ1(frs) Cable Specification

No. of Cores x Nominal Cross Sectional Area	Nominal Overall Diameter mm	Nominal Weight
# x mm²	mm	kg/km
1 x 10	9.5	150
1 x 16	10.5	210
1 x 25	12	310
1 x 35	13	405
1 x 50	14.5	530
1 x 70	16.5	805
1 x 95	18	995
1 x 120	20	1235
1 x 150	21.5	1500
1 x 185	24	1865
1 x 240	27	2400
1 x 300	29.5	3010
2 x 1,5	11	140
2 x 2,5	12	175
2 x 4	13	225
2 x 6	14	280
2 x 10	15.5	385
2 x 16	18	545
2 x 25	21	810
3 x 1,5	11.5	160
3 x 2,5	12	175
3 x 4	14	270
3 x 6	14.5	335
3 x 10	16.5	480
4 x 1,5	12.5	190
4 x 2,5	13.5	240
4 x 4	15	325
4 x 6	16	410
4 x 10	18	595
4 x 16	2.1	850
3 x 16 + 1 G 10	20	800
3 x 25 + 1 x 16	23.5	1205
3 x 35 + 1 x 16	25.5	1525
3 x 50 + 1 x 25	29	2050
3 x 70 + 1 x 35	35.5	2870
3 x 95 + 1 x 50	37.5	3875
3 x 120 + 1 x 70	42.5	4965
5 x 1,5	13.5	225
5 x 2,5	14.5	295
5 x 4	16.5	390
5 x 6	17.5	500
5 x 10	19.5	730
5 x 16	23	1055
3 x 25 + 2G16	25.5	1390
3 x 35 + 2G16	31	2320
3 x 50 + 2G25	27	3190
3 x 70 + 2G35	35.5	4525
3 x 95 + 2G50	41.5	5989
