Halogen-free Marine Cable M2XCH (EMC) 0,6/1kV

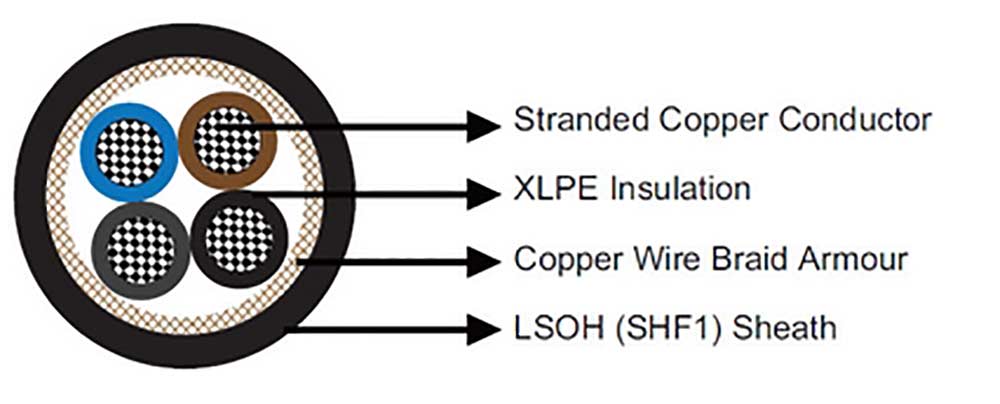

M2XCH Cable Construction

Conductors: Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.
Insulation: XLPE.
Inner Covering: Lapping.
Armour: Copper wire braid.
Outer Sheath: LSOH (SHF1).

M2XCH Cable Application

Used as fixed installation cables in various electromechanical and electronic equipment. Due to its’ overall screen the electromagnetic interference is minimized. It can be used as motor supply cable and for frequency converters controlled low voltage AC drives on ships, called VFD applications.

M2XCH Cable Standards

IEC 60092-350/360/353
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

M2XCH Cable Characteristics

Working Temperature	-40°C / + 90°C
Min. Bending Radius (fixed)	6 x D
Rated Voltage	0,6 / 1 kV(1,2 kV)
Test Voltage	3,5 kV
UV and Sunlight Resistance	EN 50289-4-17 A&B, ISO 4892-2&3

M2XCH Cable Specification

Cross Section (mm2)	Nominal Overall Diameter(mm)	Approximate Weight (kg / km)	Min. Bending Radius Fixed Installed (mm)	Max Resistance of Conductors at 20℃ (ohm / km)	Current Carrying Capacity at 45℃ (A)
2×1	10.4	175	62	18.1	15
2×1,5	11.2	205	67	12.1	20
2×2,5	12	244	72	7.41	26
2×4	13.6	336	82	4.61	35
2×6	14.8	412	89	3.08	44
2×10	16.8	556	101	1.83	61
2×16	19	748	114	1.15	82
2×25	22.4	1056	135	0.727	108
2×35	25.2	1342	151	0.524	133
2×50	28.4	1766	170	0.387	167
2×70	32.4	2377	194	0.268	206
2×95	36.8	3183	221	0.193	249
2×120	40.4	3895	242	0.153	288
2×150	45.4	4853	272	0.124	331
2×185	50.6	6014	304	0.0991	337
2×240	56.4	7641	338	0.0754	444
3×1	10.8	197	65	18.1	13
3×1,5	11.8	223	71	12.1	16
3×2,5	12.6	274	76	7.41	21
3×4	14.7	390	88	4.61	28
3×6	15.7	479	94	3.08	36
3×10	17.7	659	106	1.83	50
3×16	20.3	915	122	1.15	67
3×25	23.6	1294	142	0.727	89
3×35	26.7	1654	160	0.524	110
3×50	30.2	2199	181	0.387	137
3×70	34.5	2990	207	0.268	169
3×95	39.4	4036	236	0.193	205
3×120	43.3	4970	260	0.153	237
3×150	48.5	6171	291	0.124	272
3×185	54	7657	324	0.0991	311
3×240	60.5	9837	363	0.0754	365
4×1	11.7	220	70	18.1	13
4×1,5	12.6	264	76	12.1	16
4×2,5	13.7	328	82	7.41	21
4×4	15.6	462	94	4.61	28
4×6	17.1	589	103	3.08	36
4×10	19.3	810	116	1.83	50
4×16	22	1123	132	1.15	67
4×25	26	1608	156	0.727	89
4×35	29.4	2030	176	0.524	110
4×50	33.9	2818	204	0.387	137
4×70	38.5	3881	231	0.268	169
4×95	43.4	5123	260	0.193	205
4×120	48.5	6398	291	0.153	237
4×150	54	7913	324	0.124	272
4×185	60.6	9905	364	0.0991	311
4×240	67.9	12722	408	0.0754	365
5×1	12.4	247	75	18.1	10
5×1,5	13.4	294	81	12.1	13
5×2,5	15.4	407	93	7.41	17
5×4	17.1	538	103	4.61	24
5×6	18.5	679	111	3.08	30
5×10	21.1	951	127	1.83	42
5×16	24	1355	144	1.15	56
5×25	28.6	1937	172	0.727	74
5×35	32.9	2539	198	0.524	91
5×50	37.6	3400	226	0.387	114
5×70	42.7	4709	256	0.268	140
5×95	50	6380	300	0.193	170
5×120	54.9	7883	330	0.153	197
5×150	60.9	9670	366	0.124	226
5×185	68.1	12006	409	0.0991	258
5×240	76.2	15466	457	0.0754	303
