SZ1-K (AS+) Silicone Cable

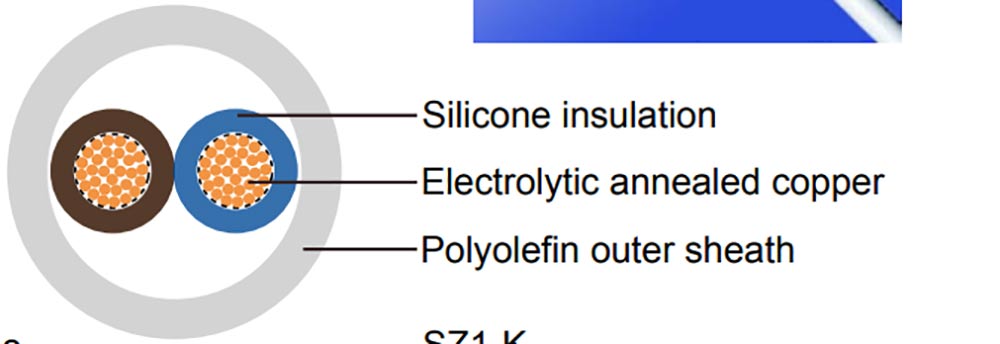

SZ1-K (AS+) Cable Construction

– Flexible electrolytic annealed copper conductor
– Class 5 in accordance with IEC 60228.
– Silicone insulation, type EI2, according to UN-EN 50363.
– Color coded to HD 308
– Thermoplastic polyolefin outer sheath according to UNE 21123

SZ1-K (AS+) Cable Application

Industrial Automation & Robotics: CNC machine tools, welding robots, and cable trays on assembly lines.
High-Temperature Areas: Steel mills, foundries, glass factories, and bakeries.
Energy & Power Generation: Cabling in boiler rooms, near turbines, and within engine rooms.
Cement & Ceramics: Kilns and drying tunnels.
Marine & Offshore: Engine room control wiring on ships and platforms (due to its low-smoke zero-halogen (LSZH) properties).
Critical Infrastructure: Security systems in tunnels, subways, and airports.

SZ1-K (AS+) Cable Technical Characteristics

– Working voltage: 600/1000 volts
– Test voltage: 2000 volts
– Minimum bending radius: 5 x Ø
– Working temperature: -15º C to +90º C
– Short circuit temperature: +250º C
– Insulation resistance: 20 MΩ x km
– Halogen free: IEC 60754-1, EN 50267-2-1
– No corrosive gases: IEC 60754-2, EN 50267-2-2
– Low smoke density: IEC 61034, EN 50268-2
– Flame retardant: IEC 60332-1, EN 50265-2-1
– Non-flame propagating: IEC 60332-3, EN 50266-2

SZ1-K (AS+) Cable Standard

UNE 211025, IEC 60502, EN 60332-1, EN 50266, EN 50267-1, EN 50267-2, EN 61034, IEC 60332-1, IEC 60332-3, IEC 60754-1, IEC 60754-2, IEC 61034, IEC 60331

SZ1-K (AS+) Cable Specification

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Overall Diameter	Nominal Weight	AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Overall Diameter	Nominal Weight
	# x mm²	mm	kg/km		# x mm²	mm	kg/km
14(50/30)	1×2.5	6.5	70	12(56/28)	3G4	13.2	255
12(56/28)	1×4	7.3	90	10(84/28)	3G6	14.4	370
10(84/28)	1×6	7.8	115	8(80/26)	3G10	16.5	530
8(80/26)	1×10	8.8	165	6(128/26)	3G16	18.6	740
6(128/26)	1×16	9.9	225	6(128/26)	3×16	18.6	740
4(200/26)	1×25	11	310	4(200/26)	3×25	23.4	1040
2 (280/26)	1×35	12.2	410	12(56/28)	3G4	13.2	255
1(400/26)	1×50	13.6	550	16(30/30)	4G1.5	11.1	170
2/0(356/24)	1×70	15.7	760	14(50/30)	4G2.5	12.6	230
3/0(485/24)	1×95	17.5	980	12(56/28)	4G4	14.4	315
4/0(614/24)	1×120	19.5	1235	10(84/28)	4G6	15.7	450
300 MCM (765/24)	1×150	21.5	1530	8(80/26)	4G10	18	660
350 MCM (944/24)	1×185	23.4	1835	6(128/26)	4G16	20.4	925
500MCM (1225/24)	1×240	26.6	2495	6(128/26)	4×16	20.4	925
-	1×300	30.2	2895	4(200/26)	4×25	23,4	1310
-	1×400	34.8	3935	2(280/26)	4×50	30	2375
16(30/30)	2×1.5	9.8	140	8(80/26)	5G1.5	12.1	205
14(50/30)	2×2.5	11.1	185	14(50/30)	5G2.5	13.7	285
12(56/28)	2×4	12.5	245	12(56/28)	5G4	15.7	390
10(84/28)	2×6	13.6	305	10(84/28)	5G6	17.2	555
8(80/26)	2×10	15.5	430	8(80/26)	5G10	19.8	815
6(128/26)	2×16	17.5	585	6(128/26)	5G16	22.5	1140
4(200/26)	2×25	20	810	4(200/26)	5G25	25.9	1620
16(30/30)	3G1.5	10.3	140	2 (280/26)	5×35	27.4	1960
14(50/30)	3G2.5	11.7	190	1(400/26)	5×50	33.5	2885
