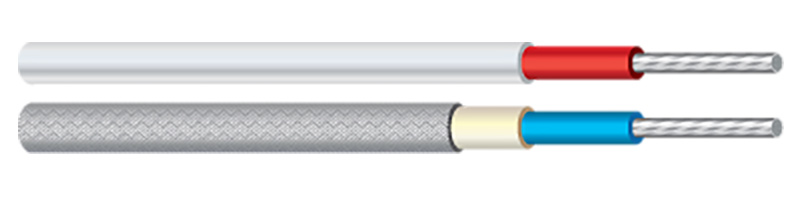

FG4G4 Cable Construction
| FG4G4 Double Insulation Silicone Rubber Cable | |
|---|---|
| Conductor | Bare copper, tinned copper Multi-stranding, single stranding (rigid) |
| Inner insulator | Silicone rubber |
| Outer insulation | Silicone rubber |
| Rated volt. | 450/750V |
| Test voltage | 5kV. 5Min |
| Rated temp. | -60°C~+180°C |
| Approvals - Standards | VDE |
| Min bending radius: | Fixed installation: 4 x outer diameter |
FG4G4 Cable Application
FG4G4 silicone rubber double insulation electric wire is a suitable connection cable for home electric appliance, high voltage machines like transformers, generators, motors, traction machines in high flexibility and high temperature conditions.
FG4G4 Cable Features
Low resistance, high conductivity
Use high purity oxygen-free copper of FG4G4 silicone cable, Strong current load capacity, Low energy consumption, The lower resistance, the more energy saving.
Flame retardant material
Use high quality silicone rubber of FG4G4 silicone cable, -60-200℃ high/low temperature resistance, Enhance the tensile strength and flexibility, Not easy to break the skin, flame resistance.
Uniformity rubber Insulation thickness
Use advanced thickness measurement equipment, Ensure low eccentricity of FG4G4 silicone cable, Effectively prevent the current breakdown of ignition, Ensure the safety of electricity.
FG4G4 Cable Specification
| Style | Size | Conductor | Inner insulation | Outer insulation | Wire OD | Resist | ||
|---|---|---|---|---|---|---|---|---|
| mm² | Stranding | OD | Nominal | Nominal | Nominal | Toler. | Ω/KM | |
| No /mm | mm | mm | mm | mm | mm | Max. | ||
| FG4G4 | 0.50 | 16/0.20 | 0.95 | 0.60 | 0.60 | 3.35 | ±0.20 | 40.1 |
| FG4G4 | 0.75 | 24/0.20 | 1.15 | 0.60 | 0.60 | 3.55 | ±0.20 | 26.7 |
| FG4G4 | 1.00 | 32/0.20 | 1.34 | 0.60 | 0.60 | 3.75 | ±0.25 | 20.0 |
| FG4G4 | 1.50 | 30/0.25 | 1.60 | 0.80 | 0.80 | 4.80 | ±0.25 | 13.7 |
| FG4G4 | 2.50 | 49/0.25 | 2.00 | 0.90 | 0.90 | 5.60 | ±0.30 | 8.21 |
