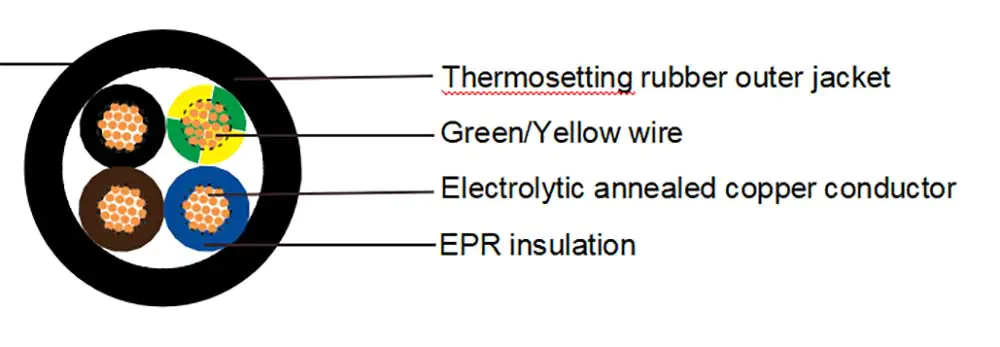

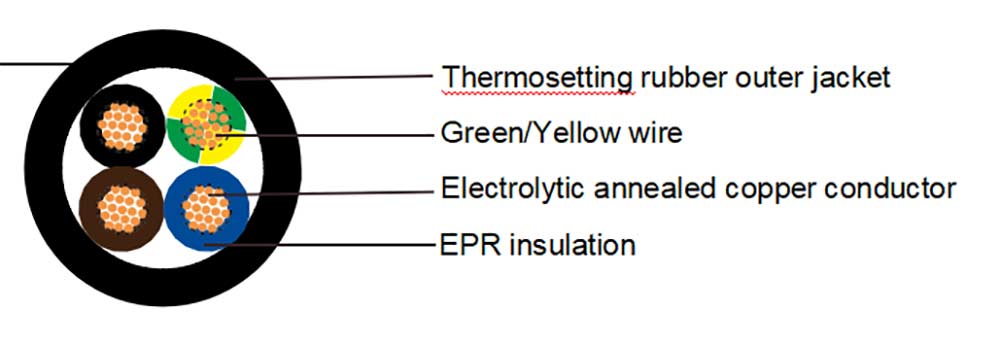

DN-K LSZH EPR Rubber Cable Construction
| Conductor | Flexible electrolytic annealed copper conductor |
| Identification | Class 5 in accordance with IEC 60228 |
| Insulation | Thermosetting rubber type EPR insulation |
| Color | Color coded to HD308 and HD186, 6 or more conductors: black numbered + green/yellow |
| Outer sheath | Thermosetting rubber type EM8 outer sheath |
DN-K LSZH EPR Rubber Cable Application
Flexible LSZH cable for fixed installations. Suitable for transport and distribution of electric power. This cable is manufactured with flexible conductors in order to facilitate installations with sinuous courses. For indoor and outdoor use.
DN-K LSZH EPR Rubber Cable Technical Characteristics
- Working voltage: 600/1000 volts
- Test voltage: 3500 volts
- Minimum bending radius: 5 x Ø
- Working temperature: -20º C to +90º C
- Short circuit temperature: +250º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
DN-K LSZH EPR Rubber Cable Standard
UNE 21022, IEC 60502, EN 60332-1, EN 50266, EN 50267-1, EN 50267-2, EN 61034, IEC 60332-1, IEC
60332-3, IEC 60754-1, IEC 60754-2, IEC 61034
DN-K LSZH EPR Rubber Cable Specification
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm | Nominal Weight kg/km | AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Overall Diameter mm | Nominal Weight kg/km |
|---|---|---|---|---|---|---|---|
| 16(30/30) | 1×1.5 | 5.8 | 56 | 16(30/30) | 3×1.5 | 10.2 | 137 |
| 14(50/30) | 1×2.5 | 6.3 | 67 | 14(50/30) | 3×2.5 | 11.2 | 174 |
| 12(56/28) | 1×4 | 6.8 | 82 | 12(56/28) | 3×4 | 12.2 | 233 |
| 10(84/28) | 1×6 | 7.3 | 106 | 10(84/28) | 3×6 | 13.4 | 325 |
| 8(80/26) | 1×10 | 8.4 | 153 | 8(80/26) | 3×10 | 16 | 480 |
| 6(128/26) | 1×16 | 9.5 | 210 | 6(128/26) | 3×16 | 19.8 | 696 |
| 4(200/26) | 1×25 | 11.1 | 308 | 4(200/26) | 3×25 | 21.6 | 1040 |
| 2(280/26) | 1×35 | 14.3 | 413 | 2(280/26) | 3×35 | 24.8 | 1408 |
| 16(30/30) | 2×1.5 | 9.8 | 120 | 16(30/30) | 4×1.5 | 11 | 163 |
| 14(50/30) | 2×2.5 | 10.7 | 151 | 14(50/30) | 4×2.5 | 12.1 | 211 |
| 12(56/28) | 2×4 | 11.6 | 193 | 12(56/28) | 4×4 | 13.2 | 283 |
| 10(84/28) | 2×6 | 12.7 | 255 | 10(84/28) | 4×6 | 14.6 | 385 |
| 8(80/26) | 2×10 | 14.9 | 377 | 8(80/26) | 4×10 | 17.3 | 583 |
| 6(128/26) | 2×16 | 16.9 | 552 | 6(128/26) | 4×16 | 19.8 | 875 |
