0.6/1kV DN-F Rubber Cable

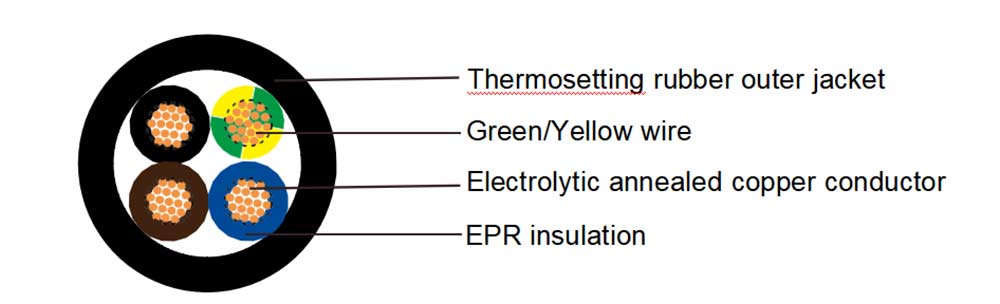

DN-F Rubber Cable Construction

Conductor	Flexible stranded copper wire. Class 5 acc/. UNE-EN 60228.
Insulation	UNE 21123 - Thermostable ethylene-propylene elastomer (EPR).
Identification	HD 308 S2
Assembly	Concentrically assembled insulated conductors.
Outer cover	UNE 21123 - Thermostable polychloroprene rubber elastomer type SE1.
Color	Black

DN-F Rubber Cable Application

Flexible cables are suitable for mobile applications with cross-linked insulation and rubber outer sheath for heavy-duty applications in dry, humid or wet locations, outdoors, in explosive atmospheres. Suitable for use in industrial and agricultural workshops, buildings, power supply of appliances for heavy-duty equipment, engines, transportable machines, lifting equipment, etc…. Suitable for submerged installations (AD8), submerged pumps.

DN-F Rubber Cable Technical Characteristics

Working voltage: 600/1000 volts
Test voltage: 2000 volts
Minimum bending radius: 3 x Ø
Working temperature: -25º C to +90º C
Short circuit temperature: +250º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km

DN-F Rubber Cable Standard

UNE 21150, UNE 21166, EN 60332-1, IEC 60332-1

DN-F Rubber Cable Specification

AWG	No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	Nominal Weight kg/km	AWG	No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	Nominal Weight kg/km
10(84/28)	1×6	8.3	113	16(30/30)	3×1.5	10.9	163
8(80/26)	1×10	10	176	14(50/30)	3×2.5	12.2	216
6(128/26)	1×16	11.1	242	12(56/28)	3×4	13.9	296
4(200/26)	1×25	13.2	353	10(84/28)	3×6	15.4	385
2 (280/26)	1×35	14.7	470	8(80/26)	3×10	20	646
1(400/26)	1×50	17.1	645	6(128/26)	3×16	22.3	876
2/0	1×70	19.2	865	4(200/26)	3×25	26.8	1292
(356/24)
3/0	1×95	21.7	1121	2(280/26)	3×35	29.7	1691
(485/24)
4/0	1×120	23.4	1393	1(400/26)	3×50	35.4	2357
(614/24)
300 MCM	1×150	25.9	1717	2/0	3×70	39.6	3118
(765/24)				(356/24)
350 MCM	1×185	28.8	2079	3/0	3×95	45.1	4068
(944/24)				(485/24)
500MCM	1×240	31.9	2668	16(30/30)	4×1.5	11.9	199
(1225/24)
-	1×300	34.9	3272	14(50/30)	4×2.5	13.5	269
16(30/30)	2×1.5	9.3	115	12(56/28)	4×4	15.9	387
14(50/30)	2×2.5	10.7	166	10(84/28)	4×6	18.1	516
12(56/28)	2×4	12.3	226	8(80/26)	4×10	21.5	790
10(84/28)	2×6	13.6	286	6(128/26)	4×16	24.2	1081
8(80/26)	2×10	18	505
6(128/26)	2×16	21.3	713
4(200/26)	2×25	25.7	1050
