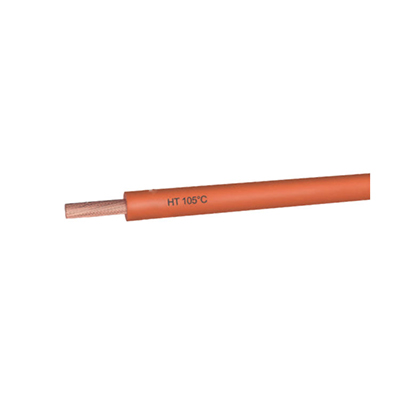

HT 105°C Single PVC Cable Construction
| Conductive Material | Bare Copper, Tin plated copper |
| Insulation material | PVC (Polyvinyl chloride plasticized) Y |
| Cable Type | Single core, UNIPOLARE |
| Sheath colour | Orange or others |
HT 105°C Single PVC Cable Application
HT 105°C Single PVC Cable is usually installed in lighting equipment and the maximum conductor temperature does not exceed 105°C during normal use. HT 105°C Single PVC Cable is a versatile, cost-effective solution for internal wiring in hot environments requiring frequent movement or complex wiring.
HT 105°C Single PVC Cable Characteristics
| Operating temperature | +5°C ~105°C on the conductor |
| Rated voltage | 300/500 V for size up to 1 mm2 450/750 V for size over 1 mm2 |
| Max temp. of short circuit | 160°C on the conductor (max duration 5 seconds) |
| Min. bending radius | Fixed installation: 4 x outer diameter |
HT 105°C Single PVC Cable Standards
- EN 50525-2-31
- UE 305/2011 (CPR)
- EN 50575 + EN 50575/A1
HT 105°C Single PVC Cable Feature
- High-Temperature Resistance: Its primary advantage is that it doesn’t melt, soften, or become brittle quickly in high-temperature environments.
- Flexibility: Easily installs in complex wiring harnesses, control panels, and tight corners.
- Durability: The tough PVC insulation offers excellent resistance to abrasion, impact, chemicals, and moisture.
- Cost-Effectiveness: PVC is more economical than other high-temperature insulation materials, such as silicone rubber or PTFE (Teflon).
HT 105°C Single PVC Cable Specification
| Nominal size mm2 | Max diameter of wires mm | Outer diameter mm | Cable weight kg/km |
|---|---|---|---|
| 1x0,25 | 0,21 | 1,35 | 3,8 |
| 1x0,35 | 0,21 | 1,75 | 5,9 |
| 1x0,5 | 0,21 | 2,1 | 9 |
| 1x0,75 | 0,21 | 2,3 | 12 |
| 1x1 | 0,21 | 2,5 | 15 |
| 1x1,5 | 0,26 | 2,9 | 20 |
| 1x2,5 | 0,26 | 3,6 | 30 |
| 1x4 | 0,31 | 4,1 | 45 |
| 1x6 | 0,31 | 4,7 | 65 |
| 1x10 | 0,41 | 6 | 110 |
| 1x16 | 0,41 | 6,9 | 160 |
| 1x25 | 0,41 | 8,5 | 250 |
| 1x35 | 0,41 | 9,7 | 340 |
