ESUY Copper Earthing Cable for Grounding and Shorting

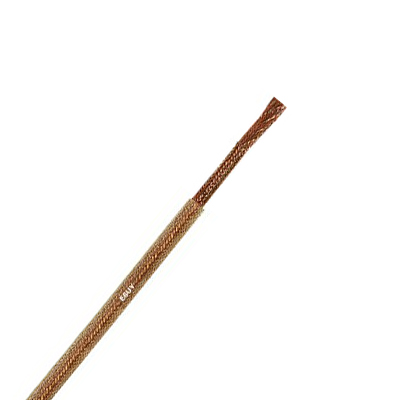

ESUY Earthing Cable Construction

• Bare copper conductor, extra fine wire, high flexible
• Earthing cable of braid wires over core strands in alignment with DIN VDE 0283-3 / EN 61138
• Braiding of bare copper wires over the stranded copper conductor
• Outer sheath of PVC compound type TM2 acc. to DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour: transparent (glass clear)

ESUY Earthing Cable Application

Its primary application is in high-voltage environments such as substations and switching stations, power plants, railway electrification systems, and heavy industrial facilities, where it serves the following functions:

• Providing protection during maintenance
• Grounding for high-voltage electrical installations in power utilities and railway systems
• Grounding and equipotential bonding for mechanical components and electronic data processing systems

ESUY Earthing Cable Technical Data

ESUY Earthing Cable Feature

• Highly conductive bare copper stranded wire: Typically utilizes ultra-fine strands to achieve maximum flexibility.
• Robust PVC Insulation (ESUY): Often orange or yellow for enhanced visibility. Features abrasion resistance, oil resistance, weather resistance, and chemical corrosion resistance.
• Tin-Plated Copper: Most premium products undergo tin plating (tin coating) to prevent copper oxidation and degradation over time, particularly suitable for humid or corrosive environments.
• Connector Fittings: Equipped with professional-grade, robust clamps (often bronze or copper) that secure wires through crimping for stable, low-resistance connections. Typically includes insulated handles for safe operation.
