600/1000V XV XLPE Insulation Flexible PVC Jacket Cable

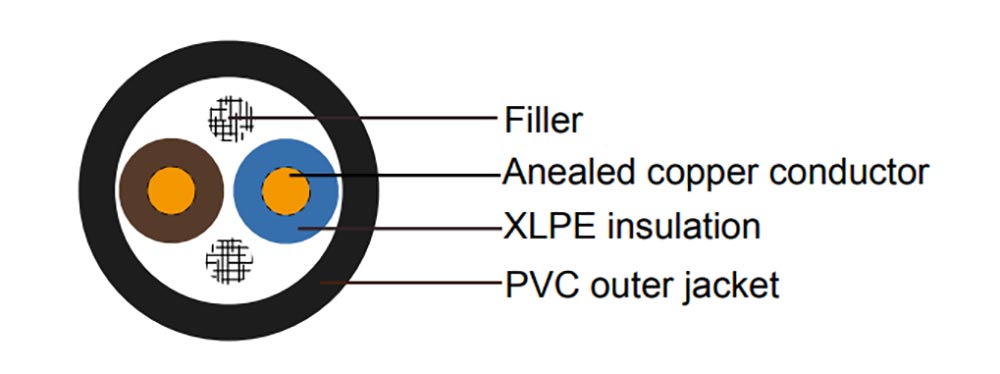

XV Cable Construction

– Plain copper conductor, class 1(6mmsq) to NP 2363
– XLPE insulation
– Colour coded to HD 308
– Not ffbrous and not hygroscopic ffller(optional)
– Flexible PVC, type ST2 outer jacket

XV Cable Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

XV Cable Standard and Approval

IEC 60502-1 NP2363

XV Cable Technical Characteristics

– Voltage Rating: 600/1000V
– Test voltage: 3500 volts
– Minimum bending radius: 12 x Ø
– Operation temperature range: -15 °C to 90 °C
– Short-circuit temperature: 250 °C
– Flame retardant: IEC 60332.1
– Insulation resistance: 1000 MΩ x km

XV Cable Specification

No. of Cores x Nominal Cross Sectional Area	Nominal Overall Diameter	Nominal Weight
# x mm2	mm	kg/km
1 x 35	12	390
1 x 50	13.5	515
1 x 70	15.5	720
1 x 95	17.5	975
1 x 120	19.5	1225
1 x 150	21	1490
1 x 185	23.5	1855
1 x 240	26.5	2385
1 x 300	28.5	2995
1 x 400	32	3905
1 x 500	36	4835
2 x 1.5	9.5	115
2 x 2.5	10	140
2 x 4	11	185
2 x 6	12	255
2 x 10	14.5	365
2 x 16	18.5	610
2 x 25	21.5	890
2 x 35	23.5	1135
2 x 50	26.5	1475
3 x 1.5	10	130
3 x 2.5	10.5	170
3 x 4	11.5	225
3 x 6	12.5	295
3 x 10	15	455
3 x 16	19.5	745
3 x 25	23	1110
3 x 35	25	1440
3 x 50	28	1880
4 x 1.5	10.5	155
4 x 2.5	11.5	200
4 x 4	12.5	275
4 x 6	14	365
4 x 10	16.5	560
4 x 16	19.5	830
3 x 25 + 1 x 16	24	1280
3 x 35 + 1 x 16	26	1610
3 x 50 + 1 x 25	29.5	2150
3 x 70 + 1 x 35	33.5	3000
3 x 95 + 1 x 50	38	4015
3 x 120 + 1 x 70	43.5	5210
3 x 150 + 1 x 70	47	6180
3 x 185 + 1 x 95	52.5	7810
3 x 240 + 1 x120	59	10000
5 x 1.5	11.5	180
5 x 2.5	12.5	240
5 x 4	13.5	330
5 x 6	15	465
5 x 10	18	685
5 x 16	21	1020
3 x 25 + 2G16	25.5	1440
3 x 35 + 2G16	27.5	1785
3 x 50 + 2G25	31.5	2415
3 x 70 + 2G35	36	3345
3 x 95 + 2G50	40.5	4480
3 x 120 + 2G70	46.5	5875
3 x 150 + 2G70	49.5	6835
3 x 185 + 2G95	55.5	8700
3 x 240 + 2G120	62.5	11125
6 x 1.5	11.5	215
7 x 1.5	11.5	220
8 x 1.5	13.2	265
10 x 1.5	14.3	280
12 x 1.5	14.7	320
14 x 1.5	15.5	360
16 x 1.5	16.2	405
19 x 1.5	17.1	460
24 x 1.5	19.8	570
30 x 1.5	21	685
37 x 1.5	22.6	820
6 x 2.5	12.6	285
7 x 2.5	12.6	295
8 x 2.5	14.5	355
10 x 2.5	15.8	385
12 x 2.5	16.3	440
14 x 2.5	17.1	500
16 x 2.5	18	565
19 x 2.5	18.9	650
24 x 2.5	22	805
30 x 2.5	23.3	975
37 x 2.5	25.2	1180
