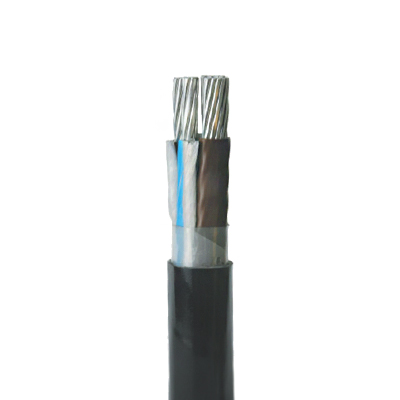

600/1000V LXV XLPE PVC Cable

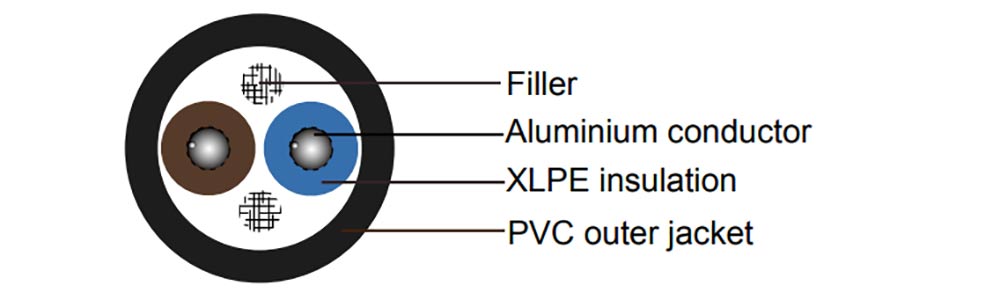

LXV XLPE PVC Cable Construction

– Aluminium conductor, class 1/class 2 to NP2363
– XLPE insulation
– Colour coded to HD 308
– Not fibrous and not hygroscopic filler
– Flexible PVC, type ST2 outer jacket

LXV XLPE PVC Cable Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

LXV XLPE PVC Cable Standard and Approval

IEC 60502-1 NP2365

LXV XLPE PVC Cable Technical Characteristics

– Voltage Rating: 600/1000V
– Test voltage: 3500 volts
– Minimum bending radius: 12 x Ø
– Operation temperature range: -15 °C to 90 °C
– Short-circuit temperature: 250 °C
– Flame retardant: IEC 60332.1
– Insulation resistance: 1000 MΩ x km

LXV XLPE PVC Cable Specification

No. of Cores x Nominal Cross Sectional Area # x mm2	Nominal Overall Diameter mm	Nominal Weight kg/km	No. of Cores x Nominal Cross Sectional Area # x mm2	Nominal Overall Diameter mm	Nominal Weight kg/km
1x16	9	100	3x16	17.5	380
1x25	10.5	145	3x25	21	530
1x35	12	175	3x35	20	510
1x50	13	230	3x50	22.5	620
1x70	15	300	3x70	26.5	880
1x95	17	395	3x95	30	1200
1x120	18.5	460	3x120	33	1500
1x150	20.5	590	3x150	37	1750
1x185	22.5	720	3x185	41	2200
1x240	25.5	910	3x240	46.5	2800
1x300	28	1150	3x300	51.5	3500
1x400	32	1400	4x16	18	330
1x500	35	1850	4x25	22.5	480
2x16	17	320	4x35	23	610
2x25	20	470	4x50	26	770
2x35	17.5	370	4x70	29	1020
2x50	19.5	460	4x95	34.5	1350
2x70	22.5	600	4x120	38	1750
2x95	26	830	4x150	42.5	2050
2x120	29	1020	4x185	47.5	2600
2x150	31.5	1300	4x240	53.5	3400
2x185	35.5	1550	4x300	59.5	4200
2x240	39.5	1900	-	-	-
2x300	43.5	2350	-	-	-
