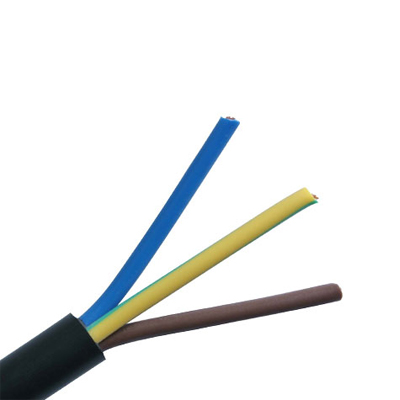

318-AG PVC Cable Construction
| CONDUCTOR | Plain Copper |
| STRANDING | Class 5 |
| INSULATION | Arctic grade PVC |
| OUTERSHEATH | Arctic grade PVC |
| OUTERSHEATH COLOUR | Blue, Orange, Yellow |
| RATED VOLTAGE | 500V |
| CORE IDENTIFICATION | 2 Core: Blue, Brown 3 Core: Blue, Brown, Green/Yellow |
| MINIMUM BENDING RADIUS | 3 x Overall Bending Radius |
| OPERATING TEMPERATURE | 70°C |
318-AG PVC Cable Application
Known for their high-grade PVC construction, 318-AG PVC Cables are ideal for custom extension cords, powering portable tools, or temporary traffic lights.
318-AG PVC Cable Standards
BS6004, EN 60228 Flame Retardant according to IEC/EN 60332-1-2
318-AG PVC Cable Specification
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL THICKNESS OF SHEATH | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|---|---|
| mm2 | mm | mm | mm | kg/km | |
| 2 | 0.75 | 0.6 | 0.8 | 6.2 | 55 |
| 2 | 1 | 0.6 | 0.8 | 6.4 | 61 |
| 2 | 1.5 | 0.7 | 0.8 | 7.4 | 83 |
| 2 | 2.5 | 0.8 | 1 | 9.2 | 130 |
| 2 | 4 | 0.8 | 1.1 | 10.4 | 176 |
| 2 | 6 | 0.8 | 1.2 | 11.3 | 73 |
| 3 | 1 | 0.6 | 0.8 | 6.8 | 105 |
| 3 | 1.5 | 0.7 | 0.9 | 8.1 | 163 |
| 3 | 2.5 | 0.8 | 1.1 | 10 | 224 |
| 3 | 4 | 0.8 | 1.2 | 11.3 | 299 |
| 3 | 6 | 0.8 | 1.2 | 12.7 | 299 |
