250/400V V90 PVC Ordinary Duty Flexible Cord

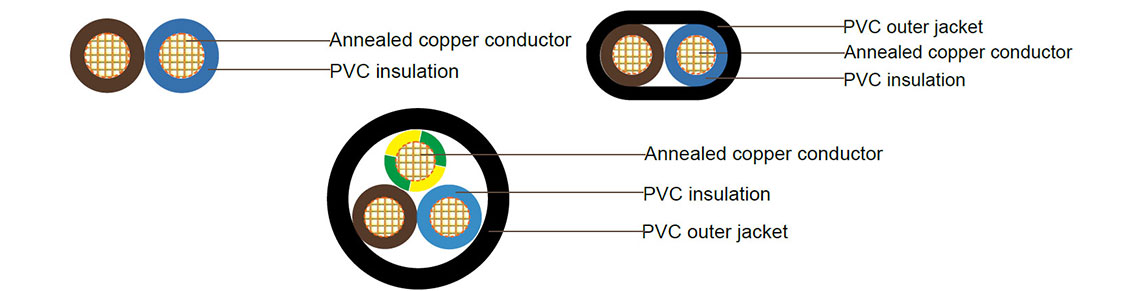

V90 PVC Ordinary Duty Flexible Cord Construction

Conductor	Annealed copper conductor to AS/NZS 1125
	Maximum continuous operating temperature: 90°C
Insulation	V-90 PVC
Colours	1C - Red, White, Light Blue, Black
	2C - Brown, Light Blue
	3C - Brown, Light Blue, Green/Yellow
	4C - Brown, Light Blue, White, Green/Yellow
	5C - Brown, Light Blue, Orange, White, Green/Yellow
Sheath	5V-90 PVC
Colours	Grey, White, Black, Orange

V90 PVC Ordinary Duty Flexible Cord Application

These cables are suitable for installation in dry applications only, in conduit or enclosures, such as switchboards, control panels, appliances and electrical equipment. such as radios, desk lamps and office machines, etc. Also they are used for extension leads in sizes 1 mm2 and above. Multicore cords containing an E core are suitable for a number of applications in dry and damp conditions, such as domestic appliances (washing machines, dishwashers). Leads for industrial and office equipment requiring a three-phase supply and an earth connection.

V90 PVC Ordinary Duty Flexible Cord Standard

AS/NZS 3191
AS/NZS 1125

V90 PVC Ordinary Duty Flexible Cord Technical Characteristics

Conductor Size	Current Carrying Capacity	Max. DC Resistance	Max. AC Resistance	Single Phase Voltage Drop
mm²	A	Ohm/km @ 20 °C	Ohm/km @ 90 °C	MV/A.m
0.5	3	39	49.7	99.4
0.75	7.5	26	33.2	66.3
1	10	19.5	24.9	49.8
1.5	16	13.3	17	34
2.5	20	7.98	10.2	20.3
4	25	4.95	6.31	12.6

V90 PVC Ordinary Duty Flexible Cord Specification

Conductor Size	No.of cores	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal O.D.	Approx. Cable Weight
mm²		mm	mm	mm	kg/100m
Round
0.5	1	0.6	-	2.2	0.9
0.75	1	0.6	-	2.4	1.2
1	1	0.6	-	2.5	1.5
1.5	1	0.7	-	3.0	2.1
2.5	1	0.8	-	3.7	3.4
4	1	0.8	-	4.2	4.8
Flat
0.5	2	0.6	0.8	6.0×3.9	3.6
0.75	2	0.6	0.8	6.4×4.1	4.3
Round
0.75	2	0.6	0.8	6.4	5.7
1	2	0.6	0.8	6.7	6.5
1.5	2	0.7	0.8	7.7	8.9
2.5	2	0.8	1.0	9.4	14
4	2	0.8	1.0	10.5	18
0.75	3	0.6	0.8	6.8	6.8
1	3	0.6	0.8	7.1	7.9
1.5	3	0.7	0.9	8.4	11
2.5	3	0.8	1.1	10.2	17
4	3	0.8	1.1	11.4	23
0.75	4	0.6	0.8	7.4	8.2
1	4	0.6	0.9	8.0	9.9
1.5	4	0.7	1.0	9.4	14
2.5	4	0.8	1.1	11.2	21
4	4	0.8	1.1	12.5	29
0.75	5	0.6	0.9	8.3	10
1	5	0.6	0.9	8.7	12
1.5	5	0.7	1.1	10.5	17
2.5	5	0.8	1.2	12.4	26
4	5	0.8	1.3	14.1	36
