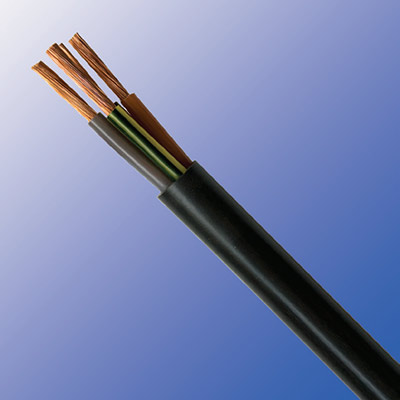

0.6/1kV FXV XLPE PVC Power Cable

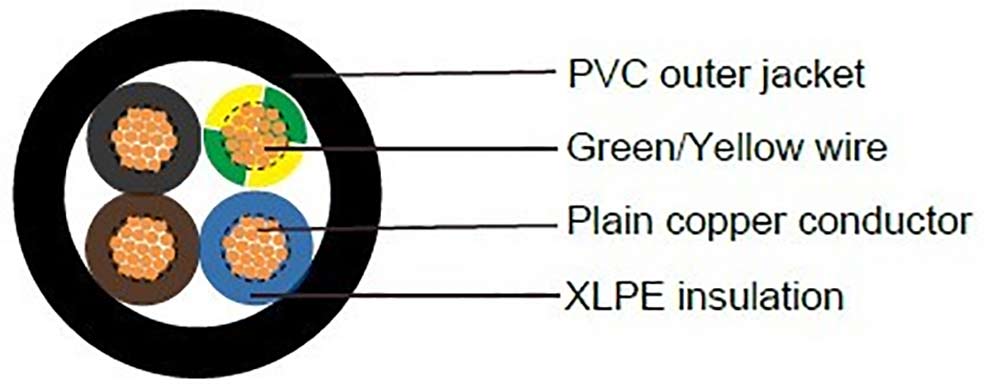

FXV Power Cable Construction

– Flexible plain copper strands
– Strands to VDE-0295 Class-5, IEC 60228 Class-5
– XLPE (Cross-Linked Polyethylene) insulation to IEC60502
– Color code VDE-0293-308
– Flexible black PVC (Polyvinyl Chloride) jacket

FXV Power Cable Application

These cables for energy distribution are suitable for all types of low voltage industrial-type connections. in urban grids, building installations. etc. Its high flexibility makes the installation process substantially easier and as a result is particularly suitable for use in difficult layouts. They can be buried or installed in a tube as well as outdoors. They are can also be used for street lighting, power supply of buildings, ship installations and generator installations. Lastly, these cables can withstand damp conditions including total immersion in water.

FXV Power Cable Standard and Approval

IEC 60502-1

FXV Power Cable Technical Characteristics

– Voltage Rating: 600/1000V
– Temperature Rating: -15°C to +90°C
– Minimum Bending Radius: 5 x overall diameter
– Flame retardant: IEC 60332.1
– Insulation resistance: 1000 MΩ x km

FXV Power Cable Specification

No. of Cores x Cross Sectional Area # x mm2	Nominal Thickness of Insulation mm	Nominal Thickness of Sheath mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1 x 2.5	0.7	1.4	6.2	54
1 x 4.0	0.7	1.4	6.7	70
1 x 6.0	0.7	1.4	7.3	90
1 x 10.0	0.7	1.4	8.2	133
1 x 16.0	0.7	1.4	9.2	189
1 x 25.0	0.9	1.4	11	284
1 x 35.0	0.9	1.4	12.1	381
1 x 50.0	1	1.4	13.8	517
1 x 70.0	1.1	1.4	15.7	712
1 x 95.0	1.1	1.5	17.6	923
1 x 120.0	1.2	1.5	19.2	1165
1 x 150.0	1.4	1.6	21.5	1446
1 x 185.0	1.6	1.7	23.9	1748
1 x 240.0	1.7	1.8	26.9	2280
1 x 300.0	1.8	1.8	29.6	2829
1 x 400.0	2	2	33.8	3731
1 x 500.0	2.2	2.2	37.4	4776
1 x 630.0	2.4	2.4	42.7	6276
2 x 1.5	0.7	1.8	8.2	90
2 x 2.5	0.7	1.8	9.2	120
2 x 4.0	0.7	1.8	10.3	161
2 x 6.0	0.7	1.8	11.3	211
2 x 10.0	0.7	1.8	13.2	316
2 x 16.0	0.7	1.8	14.9	450
3 x 1.5	0.7	1.8	8.9	108
3 x 2.5	0.7	1.8	9.8	144
3 x 4.0	0.7	1.8	11	198
3 x 6.0	0.7	1.8	12.1	263
3 x 10.0	0.7	1.8	14.3	405
3 x 16.0	0.7	1.8	16.4	593
3 x 25.0	0.9	1.8	21.3	975
3 x 35.0	0.9	1.8	24.1	1319
3 x 50.0	1	1.8	27.8	1812
3 x 70.0	1.1	1.9	30.8	2463
4 x 1.5	0.7	1.8	9.7	129
4 x 2.5	0.7	1.8	10.7	175
4 x 4.0	0.7	1.8	12	243
4 x 6.0	0.7	1.8	13.4	328
4 x 10.0	0.7	1.8	15.7	505
4 x 16.0	0.7	1.8	18.2	749
4 x 25.0	0.9	1.8	24.1	1245
4 x 35.0	0.9	1.8	26.3	1671
4 x 50.0	1	1.8	31.3	2313
4 x 70.0	1.1	2	36.1	3204
4 x 95.0	1.1	2.2	40.2	4126
4 x 120.0	1.2	2.4	44.6	5245
4 x 150.0	1.4	2.6	49.8	6573
4 x 185.0	1.6	2.8	56.1	8050
4 x 240.0	1.7	3	64.5	10695
5 x 1.5	0.7	1.8	10.4	153
5 x 2.5	0.7	1.8	11.6	213
5 x 4.0	0.7	1.8	13.2	298
5 x 6.0	0.7	1.8	14.7	403
5 x 10.0	0.7	1.8	17.2	624
5 x 16.0	0.7	1.8	20.2	931
5 x 25.0	0.9	1.8	25.6	1555
5 x 35.0	0.9	1.8	29.3	2076
5 x 50.0	1	2	34.5	2878
