X-HF-110 Insulation HFS-110-TP Sheath Cable

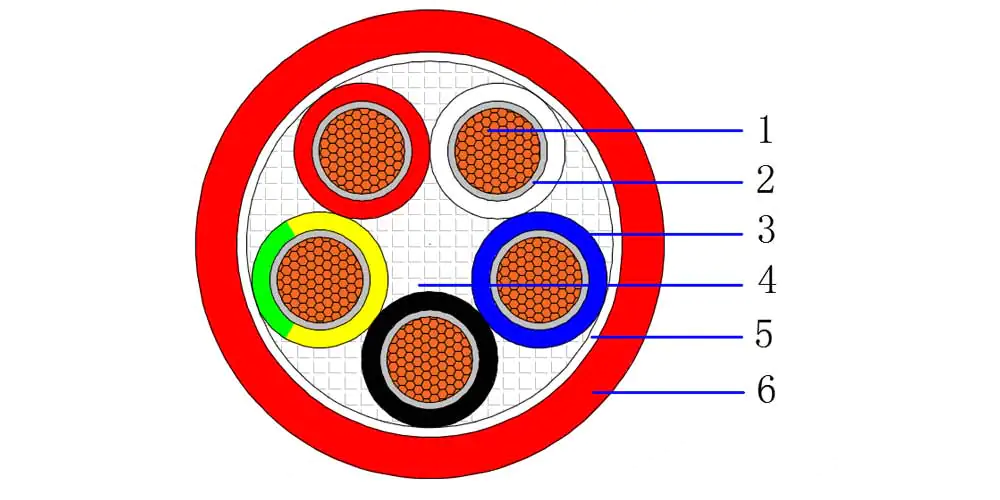

Flexible X-HF-110 Cable Construction

Conductor – Plain annealed class 5 flexible copper
Fire Resistant layer – Mica Tape
Insulation – Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)
Filler – Flame retardant material
Binder Tape – Low smoke halogen-free flame retardant tape
Outer sheath – Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)

Flexible X-HF-110 Cable Application

Power:
Switchboards, flexible droppers from busbars, transformers, load banks, or other equipment requiring fixed installation wiring. Suitable for Mains, sub-mains & sub-circuits unenclosed, enclosed in conduit & for direct buried in underground ducts.

Automotive:
Battery leads, battery chargers, electric forklifts etc.

Welding:
Earth and electrode leads.

Flexible X-HF-110 Cable Technical Data:

Voltage: 0.6/1kV
Operating Temperature:-40°C to +110°C
Short Circuit Temperature:250°C for 5 sec

Flexible X-HF-110 Cable Standards:

AS/NZS 5000.1;
AS/NZS 3808;
AS/NZS 4507

Flexible X-HF-110 Cable Features

Up to 50% higher current ratings compared to PVC flexible cable
Reduced overall diameters compared with PVC flexible cable
Tinned copper strands for corrosion protection
Tinned copper for high conductivity soldered connection
Class 5 conductors for extreme flexibility for those awkward to get connections
RoHS compliant to European environmental requirements
LSZH to reduce hazards during a fire

Flexible X-HF-110/HFS-110-TP Single Core Cable Specification
Flexible X-HF-110/HFS-110-TP 2C+E Cable Specification
Flexible X-HF-110/HFS-110-TP 3C+E Cable Specification
Flexible X-HF-110/HFS-110-TP 4C+E Cable Specification

Core x crosssection mm2	Conductor Diameter mm	Nominal insulation thickness mm	Nominal sheath thickness mm	Approx. overall diameter mm	Approx. weight kg/kg
1x16	0.20	0.7	1.4	9.9	201
1x25	0.20	0.9	1.4	11.6	292
1x35	0.20	0.9	1.4	12.8	386
1x50	0.30	1.0	1.4	14.6	529
1x70	0.30	1.1	1.4	16.6	725
1 x95	0.30	1.1	1.5	18.5	935
1x120	0.30	1.2	1.5	20.4	1174
1x150	0.30	1.4	1.6	22.7	1464
1x185	0.40	1.6	1.6	24.8	1765
1x240	0.40	1.7	1.7	28.0	2304
1x300	0.40	1.8	1.8	30.8	2847
1x400	0.50	2.0	1.9	34.9	3730
1x500	0.50	2.2	2.0	38.8	4689
1x630	0.50	2.4	2.4	44.3	6226

Core x cross section mm2	Conductor Diameter mm		Nominal insulation thickness mm		Nominal sheath thickness mm	Approx. overall diameter mm	Approx. weight kg/kg
Core x cross section mm2	phase	earth	phase	earth	Nominal sheath thickness mm	Approx. overall diameter mm	Approx. weight kg/kg
2x10+1X4E	0.40	0.30	0.7	0.7	1.8	16.3	385
2x16+1x6E	0.40	0.30	0.7	0.7	1.8	17.4	515
2x25+1x6E	0.40	0.30	0.9	0.7	1.8	19.9	708
2x35+1x10E	0.40	0.40	0.9	0.7	1.8	22.9	969
2x50+1x16E	0.40	0.40	1.0	0.7	1.8	26.4	1344
2x70+1x25E	0.50	0.40	1.1	0.9	1.8	30.6	1867
2x95+1x25E	0.50	0.40	1.1	0.9	1.9	33.3	2313
2x120+1x35E	0.50	0.40	1.2	0.9	2.0	37.2	2945
2x150+1x50E	0.50	0.40	1.4	1.0	2.1	41.7	3718
2x185+1x70E	0.50	0.50	1.6	1.1	2.3	46.6	4634
2x240+1x95E	0.50	0.50	1.7	1.1	2.4	52.5	6015

Core x cross section mm2	Conductor Diameter mm		Nominal insulation thickness mm		Nominal sheath thickness mm	Approx. overall diameter mm	Approx. weight kg/kg
Core x cross section mm2	phase	earth	phase	earth	Nominal sheath thickness mm	Approx. overall diameter mm	Approx. weight kg/kg
3x16+1x6E	0.40	0.30	0.7	0.7	1.8	19.6	689
3x25+1x6E	0.40	0.30	0.9	0.7	1.8	22.8	974
3x35+1x10E	0.40	0.40	0.9	0.7	1.8	26.0	1327
3x50+1x16E	0.40	0.40	1.0	0.7	1.8	30.1	1846
3x70+1x25E	0.50	0.40	1.1	0.9	1.9	35.1	2581
3x95+1x25E	0.50	0.40	1.1	0.9	2.0	38.4	3238
3x120+1x35E	0.50	0.40	1.2	0.9	2.1	42.8	4117
3x150+1x50E	0.50	0.40	1.4	1.0	2.3	48.2	5196
3x185+1x70E	0.50	0.50	1.6	1.1	2.5	53.7	6430
3x240+1x95E	0.50	0.50	1.7	1.1	2.6	60.4	8358

Core x cross section mm2	Conductor Diameter mm		Nominal insulation thickness mm		Nominal sheath thickness mm	Approx. overall diameter mm	Approx. weight kg/kg
Core x cross section mm2	phase	earth	phase	earth	Nominal sheath thickness mm	Approx. overall diameter mm	Approx. weight kg/kg
4x10+1x4E	0.40	0.30	0.7	0.7	1.8	19.5	617
4x16+1x6E	0.40	0.30	0.7	0.7	1.8	21.8	868
4x25+1x6E	0.40	0.30	0.9	0.7	1.8	25.6	1245
4x35+1x10E	0.40	0.40	0.9	0.7	1.8	29.2	1694
4x50+1x16E	0.40	0.40	1.0	0.7	1.9	34.0	2376
4x70+1x25E	0.50	0.40	1.1	0.9	2.0	39.5	3316
4x95+1x25E	0.50	0.40	1.1	0.9	2.2	43.6	4208
4x120+1x35E	0.50	0.40	1.2	0.9	2.3	48.7	5343
4x150+1x50E	0.50	0.40	1.4	1.0	2.5	54.6	6720
4x185+1x70E	0.50	0.50	1.6	1.1	2.7	60.7	8283
4x240+1x95E	0.50	0.50	1.7	1.1	2.9	68.6	10802
