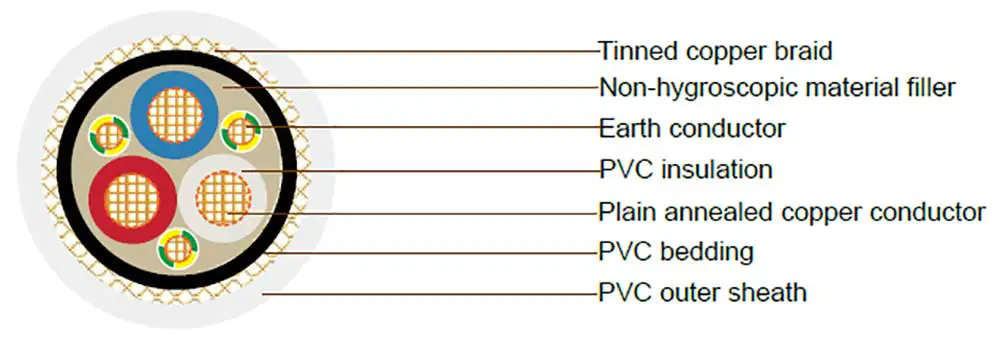

Multicore PVC Insulated VSD/EMC Cable Construction
| Conductor | Class 5 Flexible Plain Annealed Copper |
| No. of cores | 1.5mm2 ~ 6mm2 : 3C+E, 10mm2 ~ 95mm2 : 3C+3E |
| Insulation | PVC V-75 |
| Bedding | PVC 4V-75 |
| Screen | Tinned Copper Braid |
| Sheath | PVC 4V-75 |
| Sheath colour: | Transparent |
Multicore PVC Insulated VSD/EMC Cable Application
These cables are used as power cables to variable speed drives or other equipment where electromagnetic interference shall be lessened during signal transmission.
Multicore PVC Insulated VSD/EMC Cable Technical Data
- Voltage Rating: 0.6/1kV
- Operating Temperature: -25°C to +75°C
- Short Circuit Temperature : 140°C for 5 sec
Multicore PVC Insulated VSD/EMC Cable Standards
- Generally to AS/NZS 5000.1
- AS/NZS 1660.5.6 (Equivalent to IEC 60332-1)
- AS/NZS 3808
- AS/NZS 1660.5.1 (Equivalent to IEC60332-3-24)
- AS/NZS 1125
Multicore PVC Insulated VSD/EMC Cable Specification
| Number of cores | Conductor Size (mm2) | Conductor Diameter (mm) | Insulation Thickness (mm) | Each Earth Conductor Size (mm2) | Approx. Overall Diameter (mm) | Min. Bending Radius (mm) | Approx. Weight (kg/km) | |
|---|---|---|---|---|---|---|---|---|
| During Installation | After Installation | |||||||
| 3C+E | 1.0 | 1.34 | 0.8 | 1 | 11.5 | 97 | 72 | 203 |
| 1.5 | 1.56 | 0.8 | 1.5 | 12.1 | 102 | 76 | 240 | |
| 2.5 | 2.01 | 0.8 | 2.5 | 13.3 | 112 | 84 | 303 | |
| 4 | 2.6 | 1 | 2.5 | 15.9 | 134 | 100 | 422 | |
| 6 | 3.2 | 1 | 2.5 | 17.3 | 145 | 109 | 509 | |
| 3C+3E | 10 | 4.5 | 1 | 1.5 | 19.4 | 163 | 122 | 763 |
| 16 | 5.7 | 1 | 2.5 | 22.6 | 190 | 142 | 1228 | |
| 25 | 6.7 | 1.2 | 4 | 29.2 | 245 | 184 | 1505 | |
| 35 | 8.7 | 1.2 | 31.8 | 267 | 200 | 1898 | ||
| 500 | 9.5 | 11..4 | 10 | 34.8 | 292 | 219 | 2673 | |
| 700 | 11.7 | 1.4 | 10 | 40 | 336 | 22552 | 3485 | |
| 95 | 13.5 | 1.6 | 16 | 46.3 | 389 | 292 | 4519 | |
