0.6/1KV RETENAX FLAM M FLEX RVMV-K XLPE PVC Cable

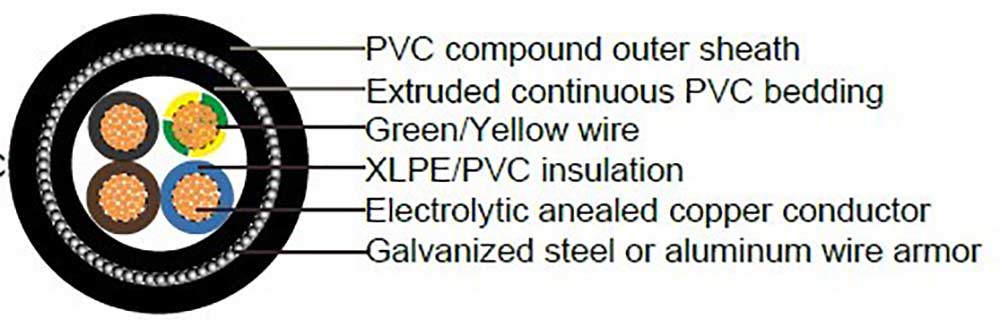

RVMV-K XLPE PVC Cable Construction

RVMV

Conductor	Class 5 Flexible Copper Conductor
Insulation	XLPE (Cross-Linked Polyethylene)
Inner Sheath	PVC (Polyvinyl Chloride)
Armour	Multicore: SWA (Steel Wire Armour)
Outer Sheath	PVC (Polyvinyl Chloride)

RVMV-K XLPE PVC Cable Application

Electric power cables with cross-linked polyethylene insulation, steel wire armour and PVC outer sheath. These cables are suitable for transport and distribution of electric power for indoor or outdoor fixed installations and for industrial use. These cables are suitable for air installation, buried or in conduit installations.

RVMV-K XLPE PVC Cable Standards

IEC 60502-1, IEC/EN 60228, ICEA S-73-532,
Flame Retardant according to IEC/EN 60332-1
Water Resistant (AD7), UV Resistant, Resistant to oils and fuels

RVMV-K XLPE PVC Cable Characteristics

Voltage Rating Uo/U
0.6/1kV
Test Voltage
3.5kV
Temperature Rating
Operating: -15ºC to +90ºC
Maximum Short Circuit Temperature: 250ºC (Max. 5 seconds)

RVMV-K XLPE PVC Cable Specification

Nominal cross-section mm2	Insulation thickness mm	Diameter over insulation mm		External diameter mm		Total weight kg / km		Resistance of the conductor at 20 ºC Ω/km
		CU	AL	CU	AL	CU	AL	CU	AL
2x1,5	0,7	2,8	-	12,1	-	292	-	12,1	-
2 x 2,5	0,7	3,2	-	13,3	-	338	-	7,41	-
2x4	0,7	3,6	-	14,3	-	395	-	461	-
2x6	0,7	4,3	-	15,2	-	473	-	3,08	-
2x10	0,7	5,2	-	17	-	641	-	1,83	-
2x16	0,7	6,4	-	19,8	-	874	-	1,15	-
2x25	0,9	7,7	-	25,9	-	1546	-	0,727	-
2x35	0,9	8,8	-	28,1	-	1895	-	0,524	-
2x50	1	10,3	-	30,7	-	2324	-	0,387	-
2x70	1,1	12	-	35,3	-	3220	-	0,268	-
2x95	1,1	13,8	-	39	-	4029	-	0,193	-
3 G 1,5	0,7	2,9	-	13,4	-	313	-	13,3	-
3 G 2,5	0,7	3,4	-	14,4	-	373	-	7,98	-
3 G4	0,7	3,8	-	15,3	-	442	-	4,95	-
3 G6	0,7	4,3	-	16,3	-	541	-	3,08	-
3 G 10	0,7	5,2	-	18,3	-	730	-	1,83	-
3x16	0,7	6,1	6,6	24	25	1290	825	1,15	1,91
3x25	0,9	7,7	8,4	25,8	27,8	1770	1510	0,727	1,2
3 x35	0,9	8,8	8,9	28,2	28,9	2170	1640	0,524	0,868
3x50	1	10,3	10,1	31,6	31,7	2760	1930	0,387	0,641
3x70	1,1	12	11,9	36,3	36,6	3840	2650	0.268	0,443
3 x95	1,2	13,8	13,8	40,9	41,5	4970	3335	0,193	0,32
3 x120	1,4	15,4	15,3	44,6	44,9	5920	3845	0,153	0,253
3x150	1,6	17,2	17	50,3	50,4	7680	4985	0,124	0,206
3 x 185	10,3	19,3	19,4	55	55,7	9200	5965	0.0991	0,164
3 x 240	1,7	21,8	22,1	60,8	62	11320	7203	0.0754	0,125
3 x 300	1,8	24,3	24,3	67	67,5	13320	8475	0.0601	0,1
4x1,5	0,7	2,9	-	14,1	-	351	-	12,1	-
4x2,5	0,7	3,4	-	15,2	-	421	-	7,41	-
4x4	0,7	3,8	-	16,3	-	509	-	4.61	-
