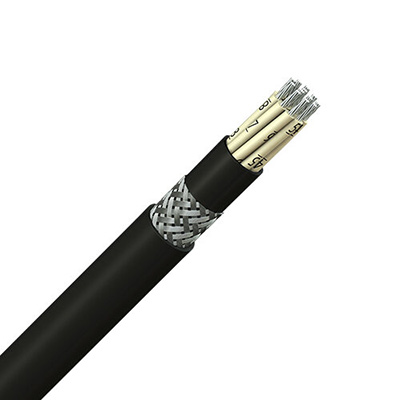

Type SW4 Armoured Marine Cable Construction
| Voltage Rating Uo/U: | 0.6/1kV |
| Conductor: | 1.0mm2 to 1.5mm2: Class 2 or Class 5 tinned copper; 2.5mm2 and above: Class 2 tinned copper |
| Insulation: | Halogen free elastomer EPR |
| Inner Sheath: | HOFR (Heat and Oil Resistant and Flame Retardant), halogen-free elastomer |
| Armour: | Galvanized steel wire braid* |
| Separator: | Suitable tape between the braid and outer sheath |
| Sheath: | HOFR (Heat and Oil Resistant and Flame Retardant), halogen-free elastomer |
| Core Identification: | White with Black printed numbers; Coloured cores are available on request |
| Sheath Colour: | Black |
Type SW4 Armoured Marine Cable Application
Type SW4 Armoured Marine Cable Characteristics
| Voltage Rating Uo/U | 0.6/1kV |
| Temperature Rating | Fixed: -40°C to +90°C |
| Flexed: -15°C to +90°C | |
| Minimum Bending Radius | Up to 25mm²: 4 x overall diameter |
| Above 25mm²: 6 x overall diameter |
Type SW4 Armoured Marine Cable Standard
- BS 6883, EN 60228,
- Flame Retardant according to IEC/EN60332-3-22
- Low Smoke Halogen Free according to IEC/EN 61034-1/2, IEC/EN 60754-1/2
Type SW4 Armoured Marine Cable Feature
- Designed for transmitting ultra-high currents (thousands of amperes).
- Suitable for harsh environments (marine, offshore, industrial applications).
- Requires exceptional mechanical strength (provided by steel wire armor).
- Offers superior oil resistance, chemical resistance, and flame retardancy.
- Maintains excellent flexibility for its size, with easier installation than equivalent rigid cables.
Type SW4 Armoured Marine Cable Specification
| NO. OF CORES | CONDUCTOR CLASS | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL THICKNESS OF INNER SHEATH | NOMINAL THICKNESS OF SHEATH | NOMINAL DIAMETER OF STEEL WIRES IN BRAID | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|---|---|---|---|---|
| mm2 | mm | mm | mm | mm | mm | kg/km | ||
| 2 | 5 | 1 | 0.8 | 1 | 0.3 | 1.2 | 11.6 | 200 |
| 2 | 5 | 1.5 | 0.8 | 1.1 | 0.3 | 1.2 | 12.4 | 241 |
| 2 | 2 | 2.5 | 0.8 | 1.1 | 0.3 | 1.2 | 13.4 | 283 |
| 2 | 2 | 4 | 1 | 1.2 | 0.3 | 1.3 | 15.6 | 387 |
| 2 | 2 | 6 | 1 | 1.2 | 0.3 | 1.4 | 16.9 | 476 |
| 2 | 2 | 10 | 1 | 1.3 | 0.3 | 1.4 | 19.2 | 627 |
| 2 | 2 | 16 | 1 | 1.4 | 0.3 | 1.5 | 22 | 853 |
| 2 | 2 | 25 | 1.2 | 1.5 | 0.3 | 1.7 | 26.1 | 1212 |
| 2 | 2 | 35 | 1.2 | 1.6 | 0.3 | 1.8 | 28.8 | 1532 |
| 2 | 2 | 50 | 1.4 | 1.7 | 0.45 | 2 | 33 | 2038 |
| 2 | 2 | 70 | 1.4 | 1.9 | 0.45 | 2.1 | 37.1 | 2680 |
| 2 | 2 | 95 | 1.6 | 2.1 | 0.45 | 2.3 | 42.6 | 3593 |
| 2 | 2 | 120 | 1.6 | 2.2 | 0.45 | 2.5 | 46.2 | 4291 |
| 2 | 2 | 150 | 1.8 | 2.3 | 0.45 | 2.6 | 50.5 | 5120 |
| 2 | 2 | 185 | 2 | 2.5 | 0.45 | 2.8 | 55.7 | 6404 |
| 2 | 2 | 240 | 2.2 | 2.8 | 0.45 | 3.1 | 62.8 | 8210 |
| 2 | 2 | 300 | 2.4 | 3 | 0.45 | 3.3 | 69.1 | 10016 |
| 3 | 5 | 1 | 0.8 | 1.1 | 0.3 | 1.2 | 12.2 | 237 |
| 3 | 5 | 1.5 | 0.8 | 1.1 | 0.3 | 1.2 | 12.9 | 263 |
| 3 | 2 | 2.5 | 0.8 | 1.1 | 0.3 | 1.3 | 14.1 | 323 |
| 3 | 2 | 4 | 1 | 1.2 | 0.3 | 1.3 | 16.3 | 439 |
| 3 | 2 | 6 | 1 | 1.2 | 0.3 | 1.4 | 17.7 | 547 |
| 3 | 2 | 10 | 1 | 1.3 | 0.3 | 1.5 | 20.4 | 743 |
| 3 | 2 | 16 | 1 | 1.4 | 0.3 | 1.6 | 23.3 | 1029 |
| 3 | 2 | 25 | 1.2 | 1.6 | 0.3 | 1.8 | 27.8 | 1515 |
| 3 | 2 | 35 | 1.2 | 1.7 | 0.45 | 1.9 | 31.4 | 2032 |
| 3 | 2 | 50 | 1.4 | 1.8 | 0.45 | 2 | 35 | 2547 |
| 3 | 2 | 70 | 1.4 | 2 | 0.45 | 2.2 | 39.6 | 3340 |
| 3 | 2 | 95 | 1.6 | 2.2 | 0.45 | 2.4 | 45.5 | 4514 |
| 3 | 2 | 120 | 1.6 | 2.3 | 0.45 | 2.6 | 49.3 | 5408 |
| 3 | 2 | 150 | 1.8 | 2.5 | 0.45 | 2.8 | 54.3 | 6587 |
| 3 | 2 | 185 | 2 | 2.7 | 0.45 | 3 | 59.9 | 8197 |
| 3 | 2 | 240 | 2.2 | 2.9 | 0.45 | 3.2 | 67 | 10475 |
| 3 | 2 | 300 | 2.4 | 3.2 | 0.45 | 3.5 | 74.1 | 12878 |
| 4 | 5 | 1 | 0.8 | 1.1 | 0.3 | 1.2 | 12.9 | 262 |
| 4 | 5 | 1.5 | 0.8 | 1.1 | 0.3 | 1.3 | 13.9 | 301 |
| 4 | 2 | 2.5 | 0.8 | 1.1 | 0.3 | 1.3 | 15.1 | 384 |
| 4 | 2 | 4 | 1 | 1.2 | 0.3 | 1.4 | 17.7 | 532 |
| 4 | 2 | 6 | 1 | 1.3 | 0.3 | 1.5 | 19.4 | 673 |
| 4 | 2 | 10 | 1 | 1.4 | 0.3 | 1.6 | 22.3 | 917 |
| 4 | 2 | 16 | 1 | 1.5 | 0.3 | 1.7 | 25.6 | 1287 |
| 4 | 2 | 25 | 1.2 | 1.7 | 0.45 | 1.9 | 31.3 | 1999 |
| 4 | 2 | 35 | 1.2 | 1.8 | 0.45 | 2 | 34.2 | 2525 |
| 4 | 2 | 50 | 1.4 | 1.9 | 0.45 | 2.2 | 38.7 | 3159 |
| 4 | 2 | 70 | 1.4 | 2.1 | 0.45 | 2.4 | 43.7 | 4226 |
| 4 | 2 | 95 | 1.6 | 2.3 | 0.45 | 2.6 | 50.2 | 5718 |
| 4 | 2 | 120 | 1.6 | 2.5 | 0.45 | 2.8 | 54.6 | 6876 |
| 4 | 2 | 150 | 1.8 | 2.7 | 0.45 | 3 | 60.1 | 8357 |
| 4 | 2 | 185 | 2 | 2.9 | 0.45 | 3.2 | 66.3 | 10406 |
| 4 | 2 | 240 | 2.2 | 3.2 | 0.45 | 3.5 | 74.6 | 13363 |
| 4 | 2 | 300 | 2.4 | 3.5 | 0.45 | 3.8 | 82.4 | 16433 |
| 5 | 5 | 1.5 | 0.8 | 1.1 | 0.3 | 1.3 | 14.8 | 351 |
| 5 | 2 | 2.5 | 0.8 | 1.2 | 0.3 | 1.3 | 16.3 | 441 |
| 7 | 5 | 1.5 | 0.8 | 1.2 | 0.3 | 1.3 | 16.8 | 452 |
| 7 | 2 | 2.5 | 0.8 | 1.2 | 0.3 | 1.4 | 18.6 | 577 |
| 12 | 5 | 1.5 | 0.8 | 1.3 | 0.3 | 1.5 | 20.1 | 621 |
| 12 | 2 | 2.5 | 0.8 | 1.4 | 0.3 | 1.6 | 22.6 | 836 |
| 19 | 5 | 1.5 | 0.8 | 1.4 | 0.3 | 1.6 | 24.1 | 888 |
| 19 | 2 | 2.5 | 0.8 | 1.5 | 0.3 | 1.7 | 27.1 | 1202 |
| 27 | 5 | 1.5 | 0.8 | 1.6 | 0.3 | 1.8 | 27.5 | 1162 |
| 27 | 2 | 2.5 | 0.8 | 1.7 | 0.45 | 1.9 | 31.4 | 1714 |
| 37* | 5 | 1.5 | 0.8 | 1.7 | 0.45 | 1.9 | 32.1 | 1608 |
