600V-2KV Flexible Ship-To-Shore Power Cables

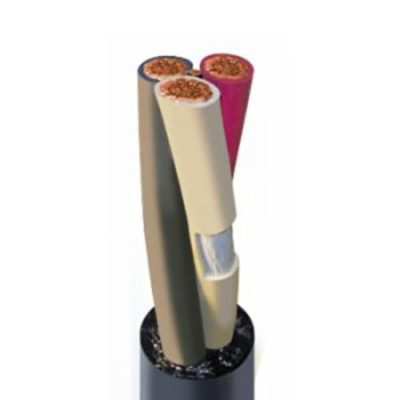

Enhanced Plus THOF Ship-To-Shore Power Cable

CONDUCTORS: Class I, 500 kcmil tin coated copper. ASTM B-33, ASTM B-172
CONDUCTOR INSULATION: EPR per ICEA S-75-381 Meets requirements of UL 44 RHH, RHW-2
CONDUCTOR: JACKET Enhanced Plus Only. CPE Composite meets requirements of UL 44 RHH, RHW-2
JACKET: Extra-Heavy duty reinforced, flame retardant black thermoset CPE per ICEA S-75-381. Specially formulated to resist the abrasive nature of the application
Color coded: • red •white • black
Features: Rated 90˚C

Enhanced Plus THOF Ship-To-Shore Power Cable Application

A tough, flexible 3/C 600V ungrounded power cable specifically designed for naval shore-to-ship and other pier side power applications. Enhanced Plus THOF is specially designed for additional sunlight and weather resistance.

Enhanced Plus THOF Ship-To-Shore Power Cable Features

Complies with OPNAVINST 11310.3B
Integral filled inner jacket for enhanced toughness and crush resistance
Water migration minimized
Mold cured reinforced jacket for enhanced abrasion and tear resistance
Jacketed singles (Enhanced Plus) for increased resistance to sunlight and weather
Pigment colored jacketed singles for phase identification
Tinned copper conductors for reduced corrosion
Indent printed for long term identification
Functional testing to ensure flexibility in both summer and winter conditions

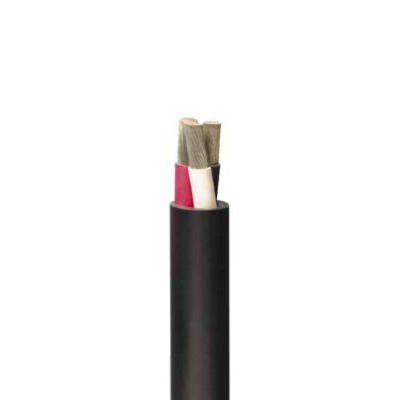

Enhanced THOF Ship-To-Shore Power Cable

CONDUCTORS: 500 kcmil tin coated copper. ASTM B-33, ASTM B-172
INSULATION: Type I EPR rated for 90°C in wet or dry locations. Meets requirements of UL 44 RHH, RHW-2
SEPARATOR: 2 mil non-hygroscopic opaque polyester
JACKET: Reinforced, flame retardant extra heavy duty black thermoset CPE specially formulated to resist the abrasive nature of the application
Color coded: • white • red • black
Features: Rated 90˚C

Enhanced THOF Ship-To-Shore Power Cable Application

A flexible 600V cable used for ship-to-shore power. Replaces former MIL-C 915 design for most applications.

Enhanced THOF Ship-To-Shore Power Cable Features

Complies with OPNAVINST 11310.3B
Integral filled inner jacket for enhanced toughness and crush resistance
Water migration minimized
Mold cured reinforced jacket for enhanced abrasion and tear resistance
Pigment colored jacketed singles for phase identification
Tinned copper conductors for reduced corrosion
Indent printed for long term identification
Functional testing to ensure flexibility in both summer and winter conditions

Enhanced THOF-500 Shore-to-Ship Power Cable

CONDUCTORS: Class I, 500 kcmil tin coated copper. ASTM B-33, ASTM B-172
Conductor Insulation: EPR per ICEA S-75-381 Meets requirements of UL 44 RHH, RHW-2
Inner Jacket: Heavy-duty black Chlorinated Polyethylene (CPE)
Reinforcement: Two reverse/open wraps of Polypropylene filament
Outer Jacket: Extra-heavy-duty black Chlorinated Polyethylene (CPE) – approximate thickness 0.140”
Features: Rated 90˚C

Enhanced THOF-500 Shore-to-Ship Power Cable Application

Flexible 600-volt cable. Extra heavy duty outer jacket. Used for submarine shore power cable applications.

Enhanced THOF-500 Shore-to-Ship Power Cable Feature

Two-layer, extra-heavy-duty jacket reinforced for maximum protection from mechanical damage – the cause of most portable cable failures
Pressure extruded jacket for water resistance
Mold-cured jacket for maximum durability
Flexible for easy handling and continuous reeling
Flame- and sunlight-resistant
