SOZ1-K(AS+) Fire-Resistance Silicone Cable

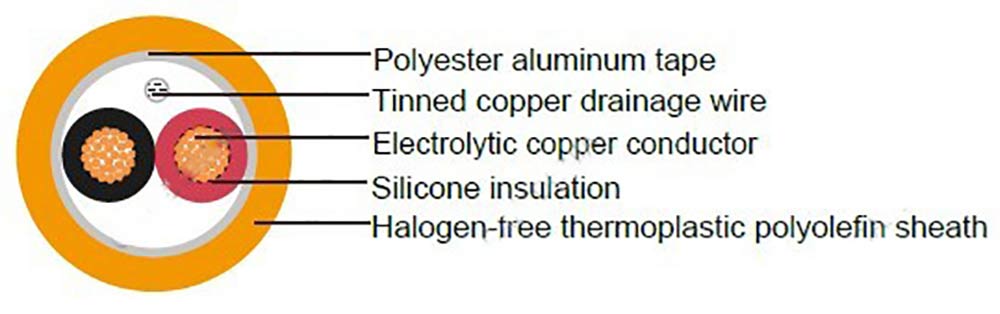

SOZ1-K(AS+) Cable Construction

– Flexible electrolytic copper conductor Class 5 according to UNE-EN 60228
– Silicone insulation type EI2 according to UNE-EN 50363
– Color coded to HD 308
– Polyester tape, tin plated copper drainage wire and polyester aluminum tape
– Halogen-free thermoplastic polyolefin sheath according to UNE 21123

SOZ1-K(AS+) Cable Application

Emergency lighting circuits: Guide occupants to escape in the event of a fire.
Fire alarm systems and detection circuits: Must remain operational to trigger alarms and indicate the location of a fire.
Public address/voice evacuation systems: Provide instructions during emergencies.
Smoke exhaust and booster fans: Essential for controlling the spread of smoke and fire within a building.
Fire pump power and controls: Ensure water supply to sprinklers and firefighters.
Critical industrial safety systems: Ensure the safe execution of emergency shutdown (ESD) procedures in nuclear power plants, oil and gas platforms, and chemical plants.

SOZ1-K(AS+) Cable Standard

UNE 211025, IEC 60228, IEC 60331-21, IEC 60754, IEC 60754-1, UNE EN 50267-2-3, UNE EN 50362 PH90, UNE EN 61034-2, UNE-EN 50200 PH90

SOZ1-K(AS+) Cable Technical Characteristics

– Working voltage: 300/500 volts
– Test voltage: 2000 volts
– Minimum bending radius: 5 x Ø
– Working temperature: -15º C to +90º C
– Short circuit temperature: +250º C
– Insulation resistance: 20 MΩ x km
– Halogen free: UNE-EN 50267 and EN 50267
– No corrosive gases: UNE-EN 50267 and EN 50267
– Low smoke density: UNE-EN 61034, EN 61034 and IEC 61034
– Fire resistant: UNE-EN 50200, EN 50200, UNE-EN 50362 and EN 50362
– Non-flame propagating: UNE-EN 60332, EN 60332 and IEC 60332
– Non-fire propagating according to UNE-EN 50266 and EN 50266

SOZ1-K(AS+) Cable Specification

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Overall Diameter	Nominal Weight
	# x mm²	mm	kg/km
16(30/30)	2×1.5	8.6	105
14(50/30)	2×2.5	9.9	135
