- Voltage range: 1000 V
- Insulation of 50mm² Conductor: XLPE 90°C
- Insulation color of 50mm² Conductor: Brown, Black, White
- Insulation of 16mm² Conductor: XLPE 90°C
- Insulation color of 16mm² Conductor: Light Blue
- Insulation of 1mm² Conductor: PVC 100°C
- Insulation color of 1mm² Conductor: Black, Grey, Red, Blue, Brown, Yellow, Green, Orange, Pink, White/Black, White/Grey, White/Red
- Inner sheath: PUR
- Inner sheath Color: Neutral
- Outer sheath: PUR
- Outer sheath Color: Orange
SXII 3×50+3×16+12×1 Cable

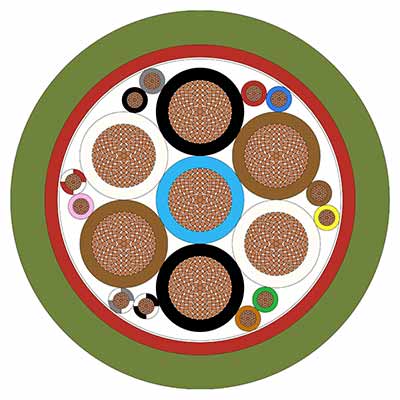

SXII 7×16+12×1 Cable
- Voltage range: 600/1000 V
- Insulation of 7x16mm² Conductor: XLPE 90°C
- Insulation color of 7x16mm² Conductor: Light Blue, 2xBlack, 2xBrown, 2xWhite
- Insulation of 1mm² Conductor: PVC 100°C
- Insulation color of 1mm² Conductor: Black, Grey, Red, Blue, Brown, Yellow, Green, Orange, Pink, White/Black, White/Grey, White/Red
- Double outer sheath: PUR/PUR
- Double outer sheath Color: Orange/Red

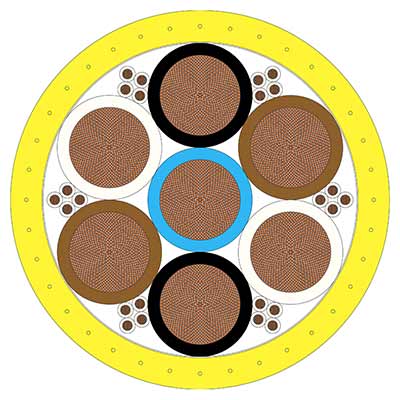

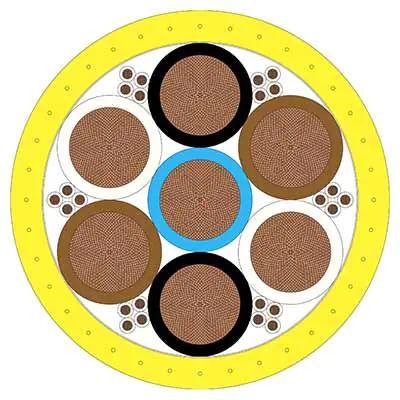

SXII 7×35+24×1 EMC RET-AT Cable
- Voltage range: 600/1000 V
- Insulation of 35mm² Conductor: XLPE 90°C
- Insulation color of 35mm² Conductor: 1x L-Blue, 2x Brown, 2x Black, 2x White
- Insulation of 1mm² Conductor: PVC 100°C
- Insulation color of 1mm² Conductor: Black number 1-24 on white surface
- Inner sheath: TPU
- Outer sheath: TPU
SXII Type Ground Airport Power Cable Specification
| Type | 50 mm² flexible, Conductor Wire diameter | 50 mm² flexible, Conductor Copper weight | 16/35 mm² flexible, Conductor Wire diameter | 16/24 mm² flexible, Conductor Copper weight | 1 mm² flexible, Conductor Wire diameter | 1 mm² flexible, Conductor Copper weight | Routine voltage test, 5 min. | Resistance 2 core at +20°C | Resistance 2 core at +70°C | Weight total |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | Kg/km | mm | Kg/km | mm | Kg/km | V | Ω/km | Ω/km | Kg/m | |
| SXII 3x50+3x16+12x1 Cable | 0,20 | 480 | 0,20 | 154 | 0,19 | 8.3 | 3500 | 0,366±0,01 | 0,439±0,01 | 2,4 |
| SXII 7x16+12x1 Cable | - | - | 0,20 | 154 | 0,19 | 8.3 | 2000 | 0,523±0,01 | 0,627±0,01 | 1,4 |
| SXII 7x35+24x1 EMC RET-AT Cable | - | - | 0,20 | 336 | 0,19 | 9,6 | 2000 | 0,267±0,01 | 0,320±0,01 | 3.5 |
