SII Type Single Airport Control Power Cable

SII 35 + 4×1 ft Single Airport Control Power Cable

Voltage range: 1000 V
Insulation of 1mm² Conductor: XLPE 90℃
Temperature range of 1mm² Conductor: -25℃ to +90℃
Inner sheath: PUR
Temperature range of Inner sheath: -55℃ to +80℃
Outer sheath: PUR
Temperature range of Outer sheath: -55℃ to +80℃

SII 50 + 4×1 ft Single Airport Control Power Cable

Voltage range: 1000 V
Insulation of 1mm² Conductor: XLPE 90℃
Temperature range of 1mm² Conductor: -25℃ to +90℃
Inner sheath: PUR
Temperature range of Inner sheath: -55℃ to +80℃
Outer sheath: PUR
Temperature range of Outer sheath: -55℃ to +80℃

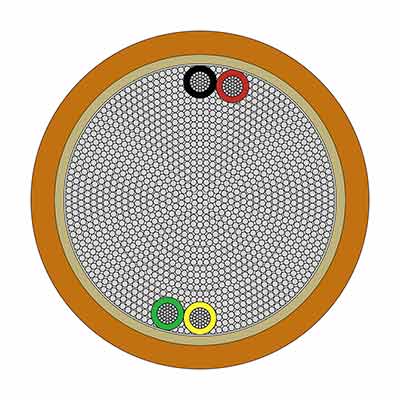

SII 70 + 4×1 ft Single Airport Control Power Cable

Voltage range: 600/1000 V
Insulation of 1mm² Conductor: XLPE 90℃
Temperature range of 1mm² Conductor: -25℃ to +90℃
Inner sheath: PUR
Temperature range of Inner sheath: -55℃ to +80℃
Outer sheath: PUR
Temperature range of Outer sheath: -55℃ to +80℃

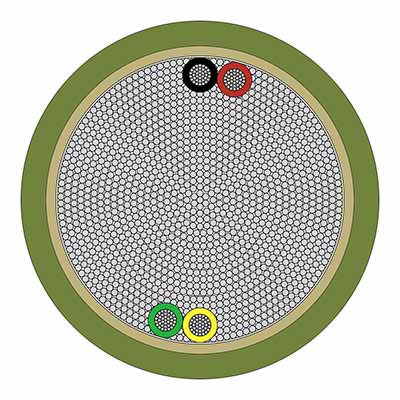

SII 120 + 4×1 ft Single Airport Control Power Cable

Voltage range: 600/1000 V
Insulation of 1mm² Conductor: XLPE 90℃
Temperature range of 1mm² Conductor: -25℃ to +90℃
Inner sheath: TPU
Temperature range of Inner sheath: -55℃ to +80℃
Outer sheath: PUR
Temperature range of Outer sheath: -55℃ to +80℃

SII Type Single Airport Control Power Cable Specification

Type	35 mm² flexible, Conductor Wire diameter	35 mm² flexible, Conductor Copper weight	1 mm² flexible, Conductor Wire diameter	1 mm² flexible, Conductor Copper weight	Type voltage test, 15 min. in water	Halogen content	Resistance at +20°C	Weight total
	mm	Kg/km	mm	Kg/km	V	ppm	Ω/km	Kg/m
SII 35 + 4x1 ft	0,20	305	0,19	8,3	4000	<400	0,54 ±0,01	0,46
SII 50 + 4x1 ft	0,20	440	0,19	8,3	4000	<400	0,348 ±0,01	0,6
SII 70 + 4x1 ft	0,20	620	0,19	8,3	4000	<400	0,249 ±0,01	0,8
SII 120+4x1 ft	0,30	1152	0,19	9,6	4000	<400	0,158 ±0,01	1,4
