- Voltage range: 0,6/1 kV
- Conductor: 7 Copper
- Insulation: PVC
- Insulation color: Light blue, 2x Brown, 2x Black, 2x White
- Inner sheath: PVC
- Inner sheath color: Natural
- Outer sheath: PVC
- Outer sheath color: Customer choice
- Temperature range: -25 ℃ to +70 ℃

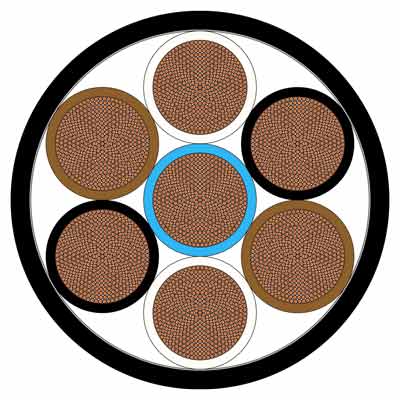

RKK 7×35 EMC Cable
RKK 7×35 Cable
- Voltage range: 0,6/1 kV
- Conductor: 7 Copper
- Insulation: PVC 70°C
- Insulation color: Light blue, 2x Brown, 2x Black, 2x White
- Outer sheath: PVC 70°C
- Outer sheath color: Customer choice
- Temperature range: -30 ℃ to +70 ℃
RKK 7×35 + 18×1 Cable
- Voltage range: 0,6/1 kV
- Conductor: Copper
- Insulation: PVC 70°C
- Insulation color: Light blue, 2x Brown, 2x Black, 2x White
- Outer sheath: PVC 70°C
- Outer sheath color: Customer choice
- Temperature range: -25 ℃ to +70 ℃

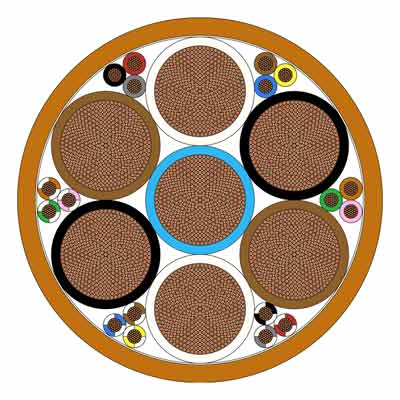

RKK 7X50+18X1 Cable
- Voltage range: 0,6/1 kV
- Conductor: Copper
- Insulation: PVC
- Insulation color: 1pcs L-Blue, 2pcs Brown, 2pcs Black, 2 pcs White
- Outer sheath: PVC
- Outer sheath color: Orange (or customer choice)
- Temperature range: -25 ℃ to +70 ℃

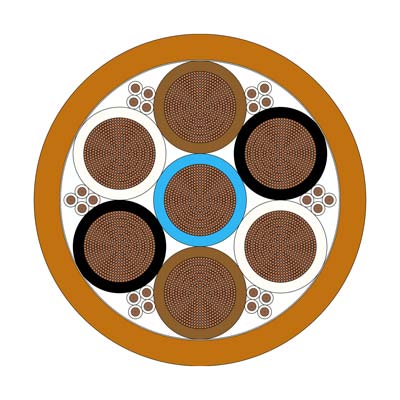

RKK 7×70 + 24×1 Cable
- Voltage range: 0,6/1 kV
- Conductor: Copper
- Insulation: PVC TI1
- Insulation color: Light blue, 2x Brown, 2x Black, 2x White
- Outer sheath: PVC TM2
- Outer sheath color: Customer choice
- Temperature range: -30 ℃ to +70 ℃
RKK Type Airport Cable Characteristics
| RKK Type | Nominal Wire diameter | Copper weight | 1 mm², flexible, Conductor Wire diameter | 1 mm², flexible, Conductor Copper weight | Insulation | Inner sheath | Outer sheath | Resistance 2 core at +20 ℃ | Resistance 2 core at +70℃ | Total Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Wall thickness | Nominal Outer diameter | Nominal Wall thickness | Nominal Outer diameter | Nominal Wall thickness | Nominal Outer diameter | ||||||||
| mm | Kg/km | mm | Kg/km | mm | mm | mm | mm | mm | mm | Ω/km | Ω/km | Kg/km | |
| RKK 7x35 EMC | 0,40 | 336 | - | - | 1,2 | 9,9 | 1,0 | 31,7 | 2,5 | 37,9 | 0,267 ± 0,1 | 0,320 ± 0,1 | 3285 |
| RKK 7x35 | 0,40 | 315 | - | - | 1,2 | 10,6 | - | - | 1,8 | 36 | 0,267 ±0,01 | 0,320 ±0,01 | 2800 |
| RKK 7x35 + 18x1 | 0,40 | 336 | 0,19 | 9,6 | 1,2 | 9,9 | - | - | 2,0 | 35,0 | 0,267±0,01 | 0,320±0,01 | 2900 |
| RKK 7X50+18X1 | 0,40 | 480 | 0,19 | 9,6 | 1,4 | 11,5 | - | - | 3,0 | 40,5 | - | - | 4100 |
| RKK 7x70 + 24x1 | 0,40 | 670 | 0,19 | 8,3 | 4,0 | 14,0 | - | - | 4,0 | 50,0 | - | - | 7700 |
