ALUS Cable Construction

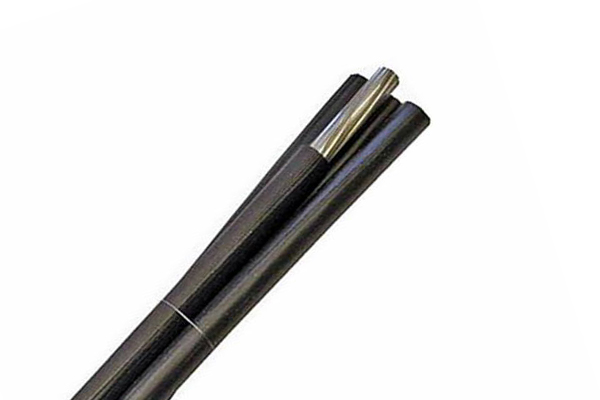

ALUS Aerial Bundled Cable is a four core, round, multi-strand aluminum wire which is PE insulated and black painted for hanging on utility poles.
ALUS Cable Application
ALUS cables are commonly used in power distribution systems, especially overhead lines. In some cases, ALUS cables can be used in specific applications such as remote control and telecontrol devices, as well as photovoltaic (solar) systems.
ALUS Cable Standard
International : HD 626 S1 part1; HD 626 S1 part2; HD 626 S1 part3 section L
National : SS 424 14 26
ALUS Cable CHARACTERISTICS
| 1kV 4x50 & 4x95 ALUS CHARACTERISTICS | |||||
|---|---|---|---|---|---|
| Construction characteristics | Electrical characteristic | Usage characteristics | |||
| Conductor material | Aluminum | Rated Voltage Uo/U (Um) | 0.6/1 kV | Minimum installation temperature | -20 °C |
| Conductor shape | Round, stranded | Operating voltage | 1 kV | Maximum operating temperature | 65 °C |
| Insulation | PE | Short-circuit max. conductor temperature | 100 °C | ||
| Colour | Black | Length | 500 m | ||
| Halogen free | Yes | 4x50 ALUS Conductor electrical resistance | 0.641 Ohm/km | 4x50 ALUS Packaging | K12 |
| Conductor flexibility | Class 2 | 4x95 ALUS Conductor electrical resistance | 0.32 Ohm/km | 4x95 ALUS Packaging | K14 |
| Outer sheath | PE | Installation type | Aerial Cable | ||
ALUS Cable Specification
| Name | Number of cores | Conductor crosssection [mm²] | Average insulation thickness [mm] | Nominal outer diameter [mm] | Approximate weight [kg/100m] | Conductor diameter [mm] | Diameter over insulation [mm] |
|---|---|---|---|---|---|---|---|
| ALUS 1 kV 4x50 | 4 | 50 | 1.3 | 26.0 | 65.0 | 8.0 | 10.6 |
| ALUS 1 kV 4x95 | 4 | 95 | 1.3 | 34.0 | 119.0 | 11.6 | 14.2 |
